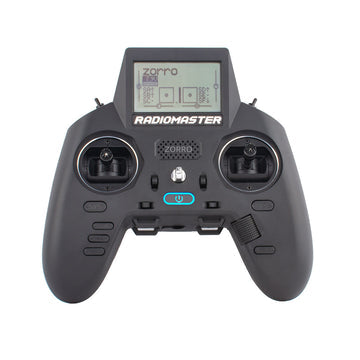

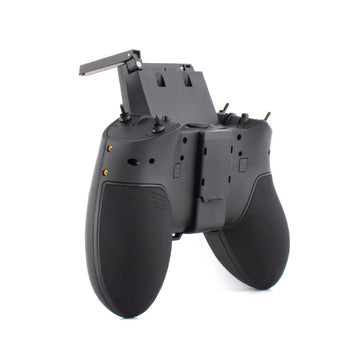

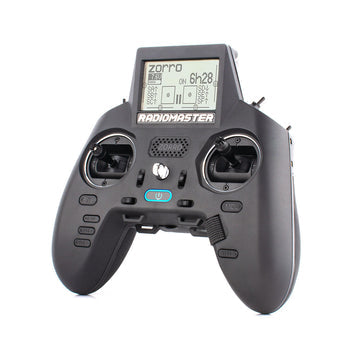

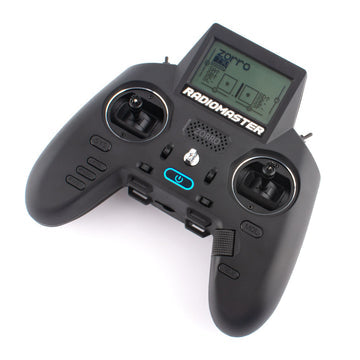

Radiomaster Zorro Radio Controller CC2500 With Batteries
RadioMaster Zorro Raio - The Compact Class-Leader.
Featuring an ergonomic design, large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.
Please note: Zorro CC2500 / ELRS / 4in1 versions will be arranged within 7days once you place an order on our web. As for the ELRS Starter Set version, it is expected to ship at the end of June. And the CC2500 + TBS Nano Crossfire Combo version is expected to ship in mid-July.
Specification
|
Versions |
CC2500 |
4in1 |
ELRS |
ELRS Starter Set |
CC2500 + TBS Nano Crossfire Combo |
|
|
Physical Dimensions |
170*159*108mm |
|||||
|
Weight |
350 grams |
|||||
|
Operating Frequency |
2.400GHz-2.480GHz |
|||||
|
Internal RF Options |
CC2500 multi-protocol |
4-in-1 multi-protocol |
ELRS |
CC2500 multi-protocol |
||
|
Supported Protocols |
Module dependent |
Module dependent |
ELRS |
Module dependent |
||
|
RF Power |
CC2500: 20dBm max. |
4-in-1: 20dBm max. |
Up to 250mw ( CE & FCC Versions will be available) |
CC2500: 20dBm max. |
||
|
Antenna Gain |
Folding 2db |
|||||
|
Operational Current |
160mA@8.4V |
|||||
|
Operational Voltage |
6.6-8.4v DC |
|||||
|
Control Distance |
> 2km @ 20dbm |
> 2km @ 20dbm |
Receiver and Power Output dependant |
> 2km @ 20dbm |
||
|
Operating system |
OpenTX / EdgeTX Compatible |
|||||
|
Control channels |
Maximum 16 (Rx dependent) |
|||||
|
Display |
128*64 Monochrome LCD |
|||||
|
Battery |
2 x 18350 (Not included) |
|||||
|
Charging |
Built in USB-C Charging |
|||||
|
Gimbal |
Hall-effect |
|||||
|
Module Bay |
Nano Size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost) |
|||||
|
Firmware Upgrade Method |
Via USB or SD card |
|||||
Support OPENTX & EDGETX
Support 4 RF Configurations
Switchable in Mode 1 and Mode 2
Zorro radio supports switching between Mode 1 and Mode 2 without disassembly. The default factory mode is Mode 2.
Adjustable Hall Gimbals
External Module Bay
Zorro Radio is with an external module bay for use with Crossfire / ELRS and other compatible modules.
18350 Battery Compartments
Battery Charging
- Supports USB-C Directing Charging
- Supports External 2S Battery Power Supply
Oversized LCD & Foldable Antenna
DIY Attachment Points
Ergonomically Designed
User Manuals
Firmware Updates
Zorro SD Contents and Firmware
Package Includes
Please note, when you choose a different version, it is packaged with different parts.
The chart below doesn't mean you will receive all versions.
| Version | Package Includes |
| CC2500 |
|
| 4-in-1 |
|
| ELRS |
|
| ELRS Starter Set |
|
| CC2500 + TBS Nano Crossfire Combo |
|
