CHASING Grabber Arm 2: Precision Underwater Manipulation

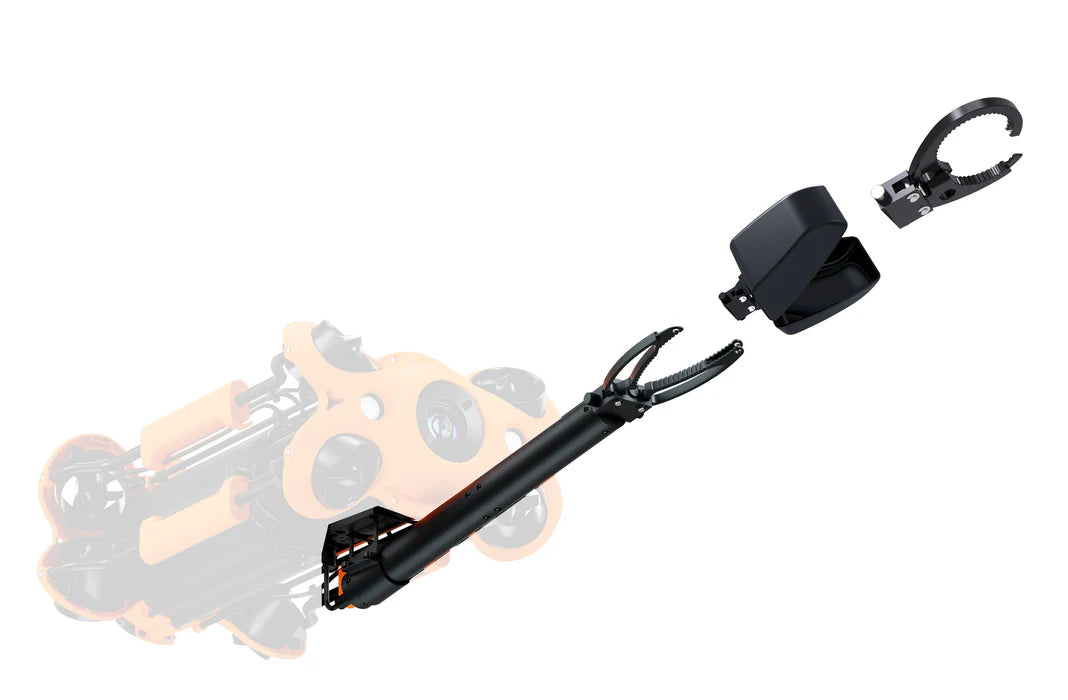

The CHASING Grabber Arm 2 is a versatile and robust robotic arm designed for the CHASING M2, M2 S, M2 Pro, and M2 Pro Max underwater drones. Engineered to facilitate a wide range of underwater tasks, it offers quick adaptability through interchangeable tool heads, including the standard two-jaw clamp, sediment sampler, and circular claw.
Key Features:
-
Enhanced Grabbing Capability: Achieve a maximum grabbing force of 7 kg with an adjustable opening distance of up to 170 mm, enabling efficient clamping, dragging, and sampling operations.
-
Optimized Visibility: The arm's 10° elevated design provides improved visual angles, enhancing operational precision and control during tasks.
-
Durable Construction: Crafted from lightweight aluminum alloy, the arm is both portable and resilient, featuring high-reliability sealing connectors suitable for depths up to 100 meters.
-
Compact and Easy Installation: With dimensions of 380 x 35 x 35 mm and weighing just 446 g, the Grabber Arm 2 is designed for straightforward installation and handling.
Specifications:
-
Max Opening: 170 mm
-
Max Grabbing Force: 7 kg
-
Body Weight: 446 g
-
Clamp Weight: 76 g
-
Max Diving Depth: 100 m
-
Body Dimensions: 380 x 35 x 35 mm
-
Clamp Dimensions: 125 x 53 x 22 mm
Elevate your underwater operations with the CHASING Grabber Arm 2—your reliable solution for precision manipulation in challenging aquatic environments.
