D-RTK 3 Multifunctional Station (Pre-Order)

Sale price$2,205.00
Quantity:

Note: This is a pre-order item.

The new D-RTK 3 Multifunctional Station integrates high-performance antennas and receiver modules capable of tracking and resolving data from major global satellite navigation systems, and it supports multiple data transmission links. With these outstanding features, it can serve as a base station to provide centimeter-level positioning for multiple drones simultaneously or extend the operational range of drones in relay station mode. Additionally, the new rover station mode, combined with the DJI Enterprise app and DJI Terra, provides a comprehensive solution for high-precision aerial surveying applications, ensuring a secure and accurate operation.

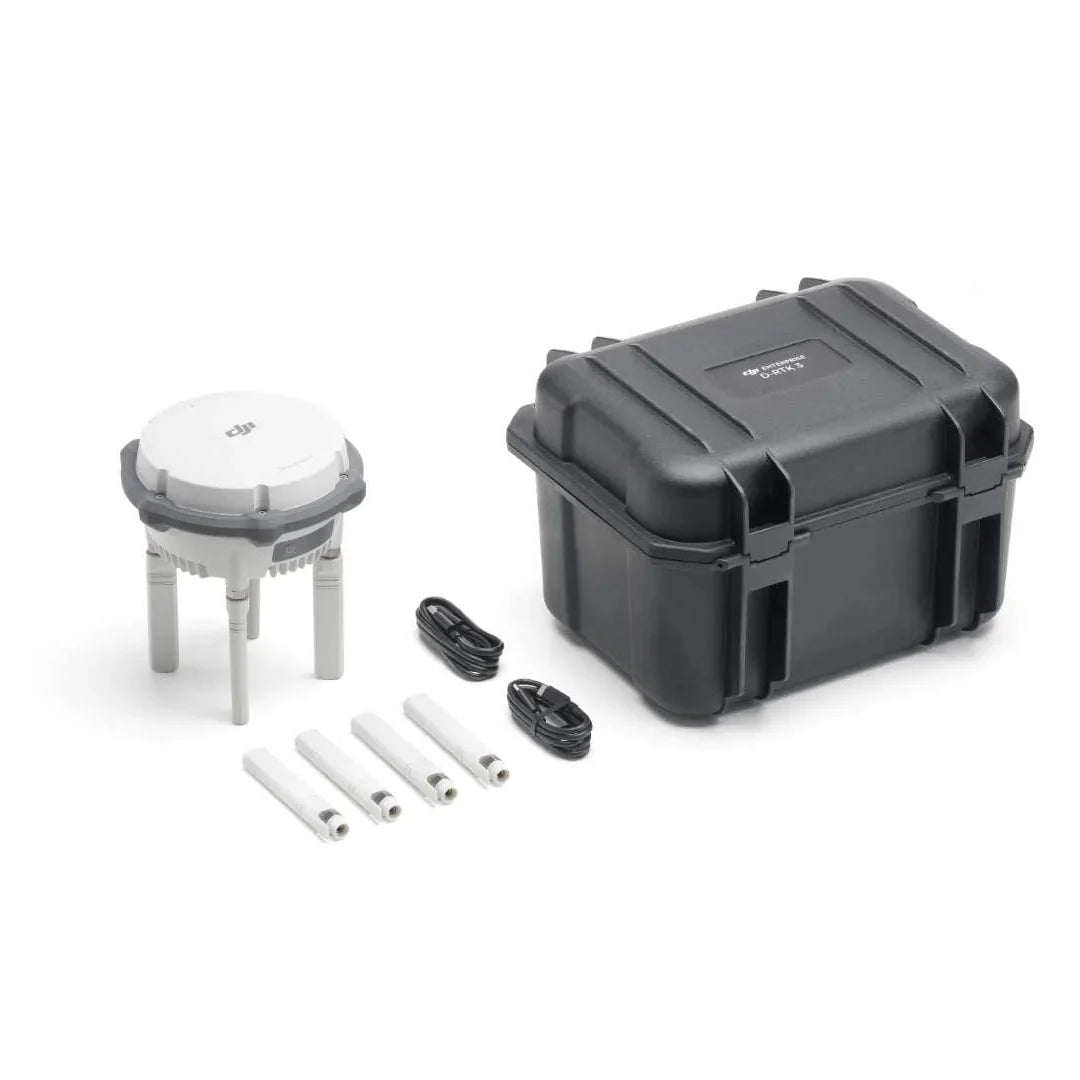

Package Includes:

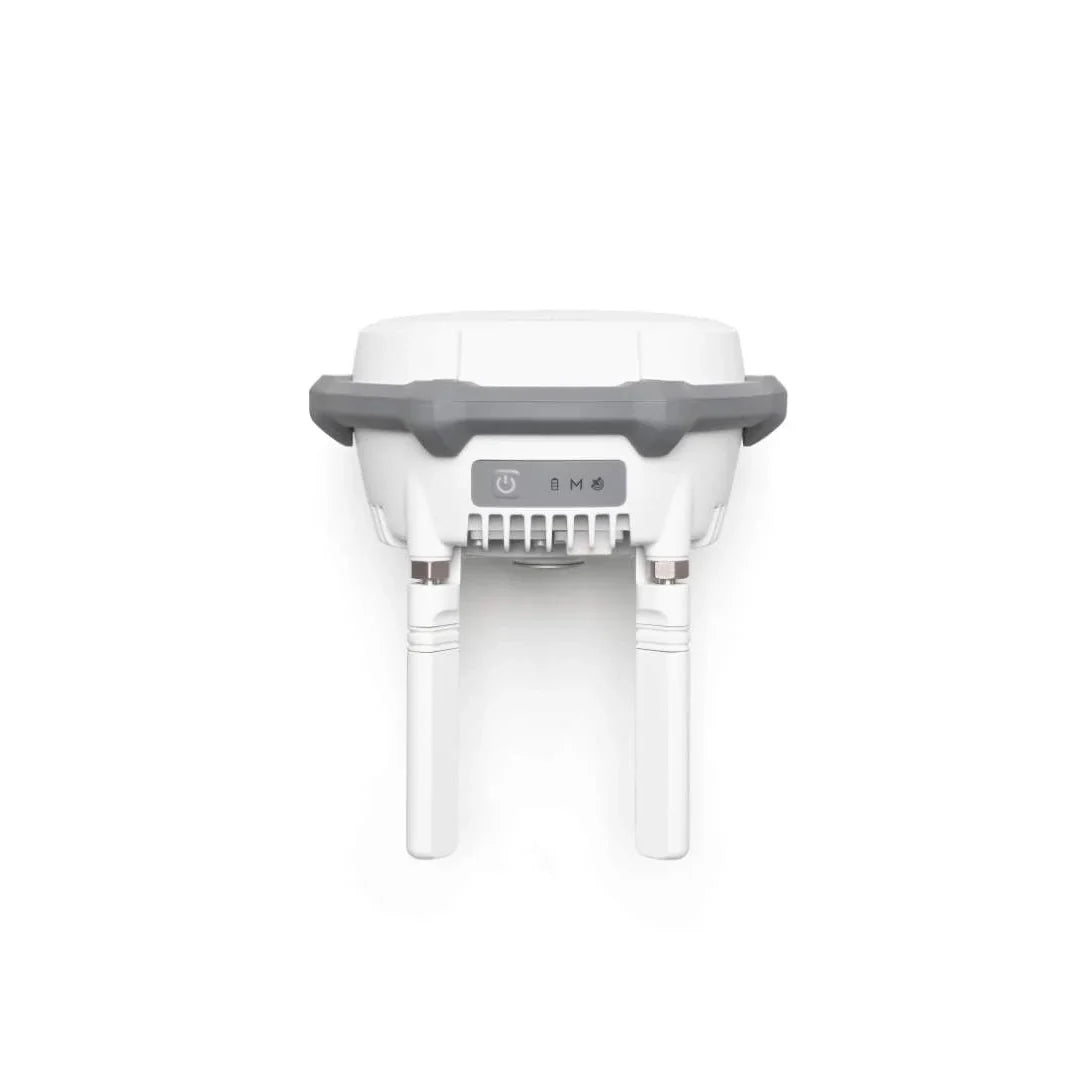

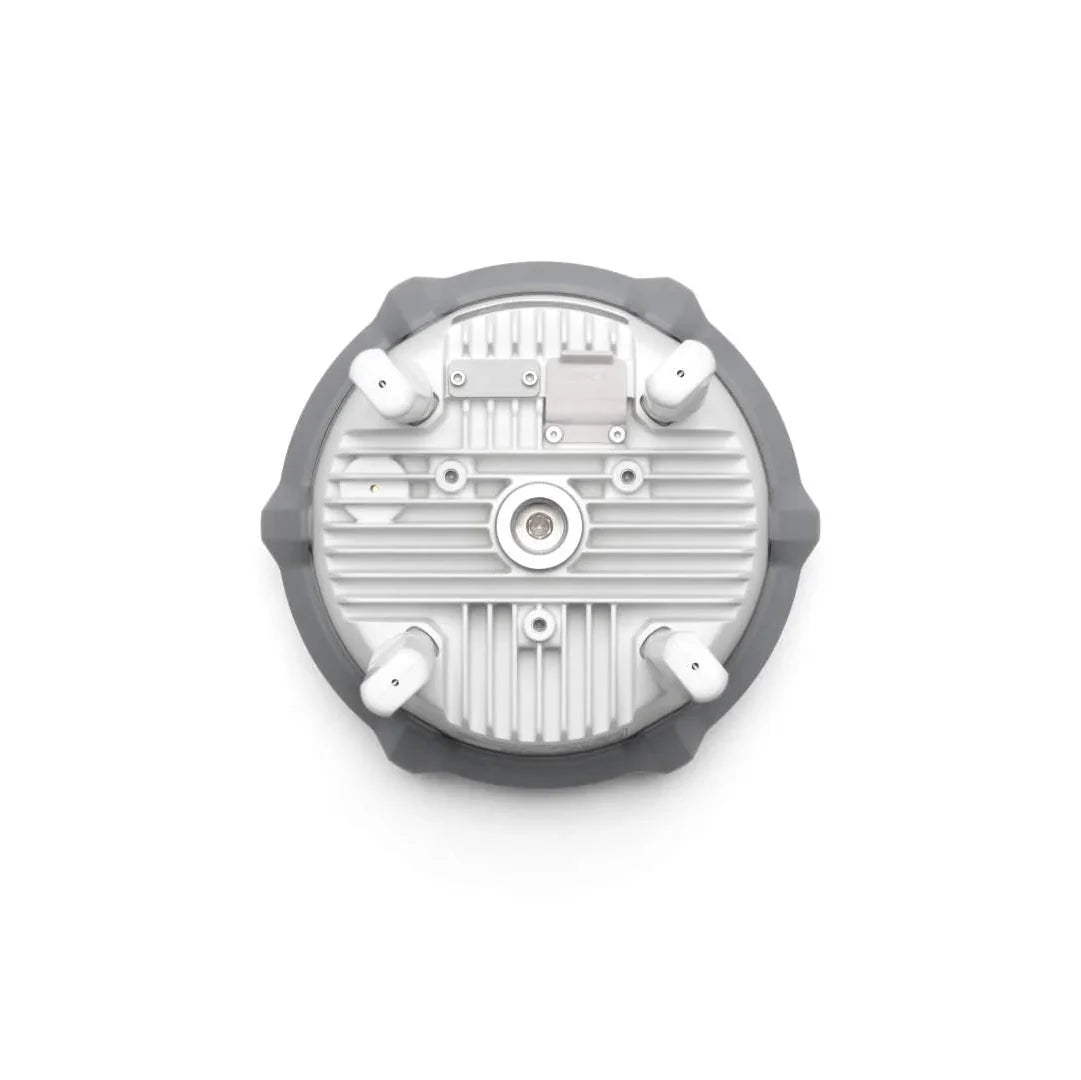

1x D-RTK 3 Module

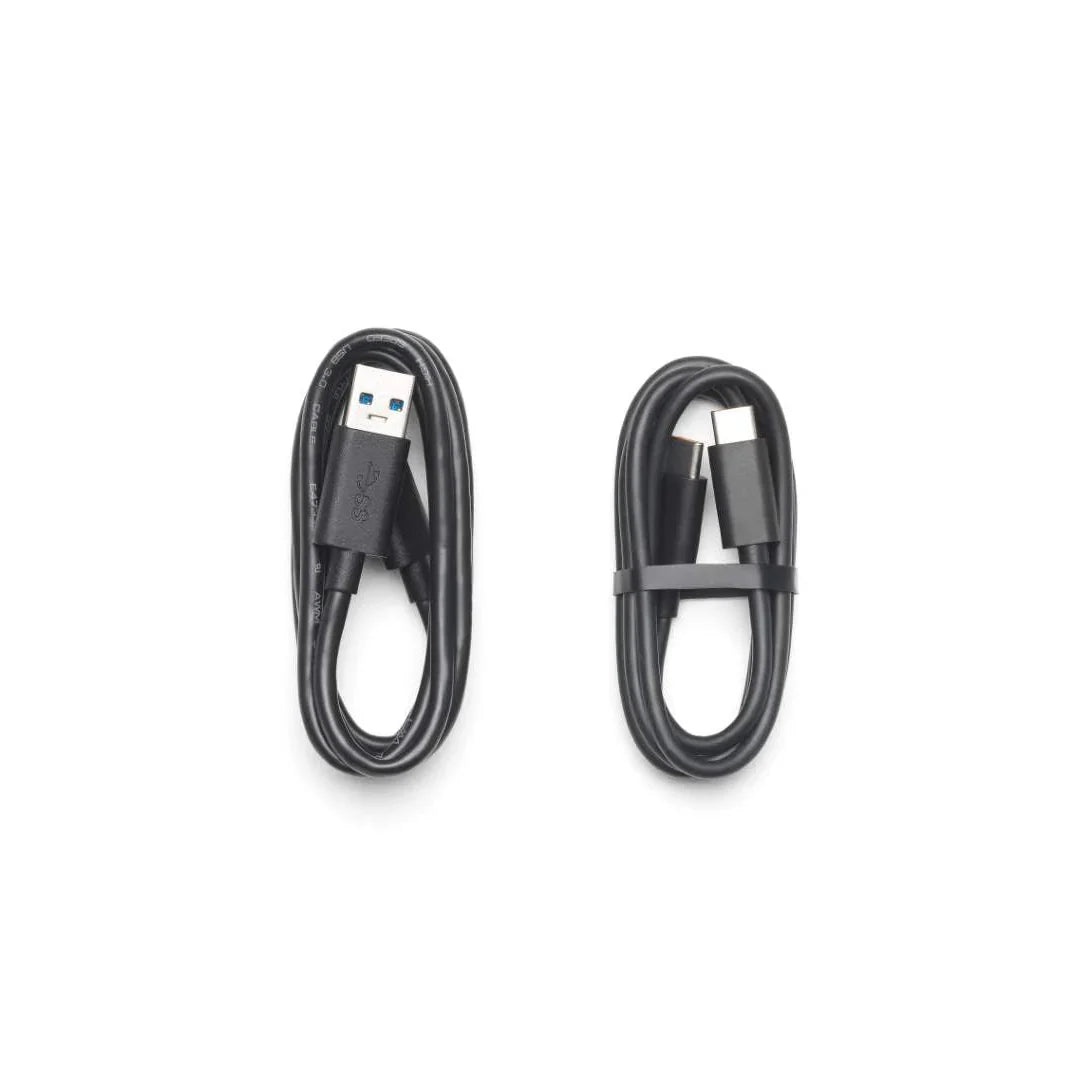

1x USB A To C Cable

1x USB C To C Cable

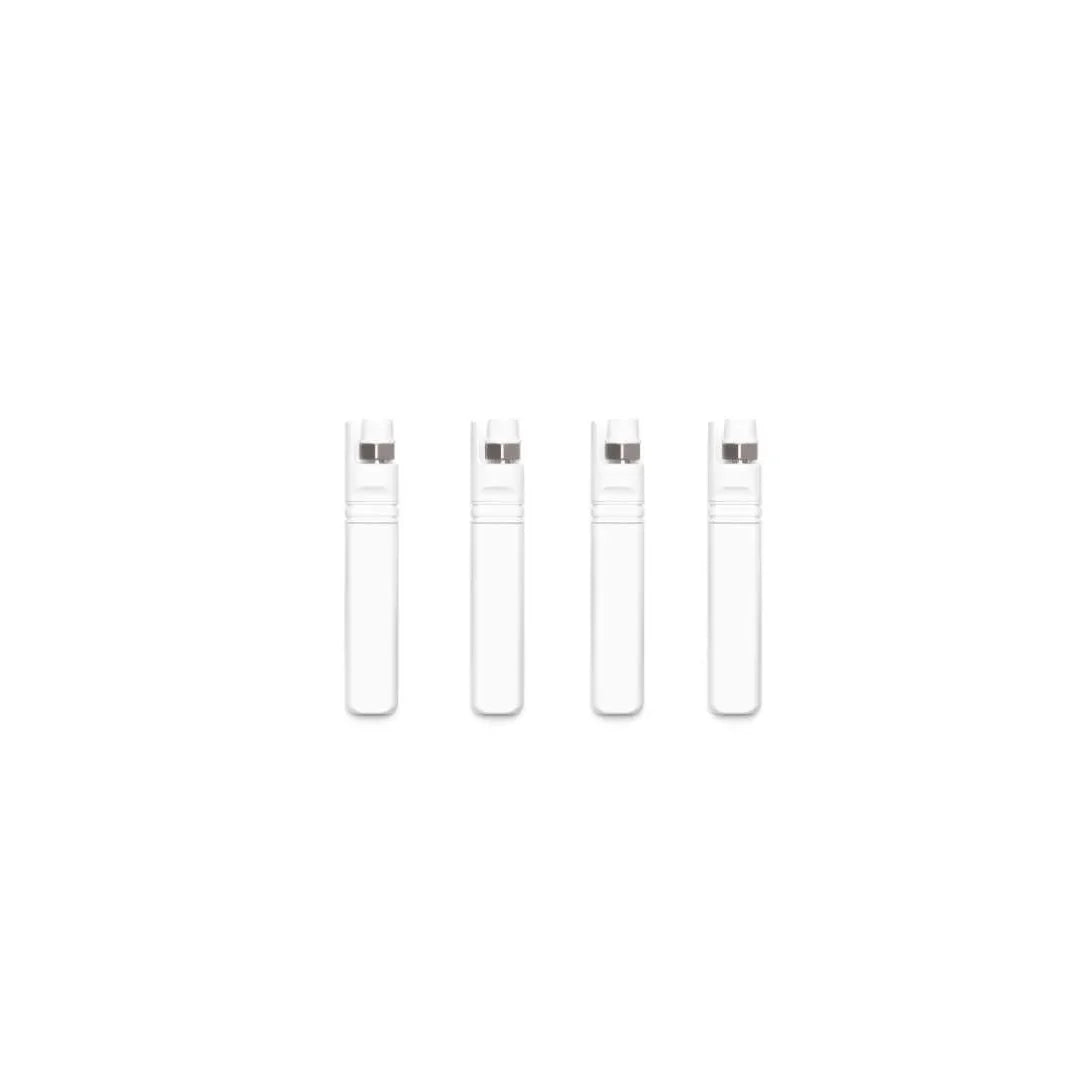

4x Antenna

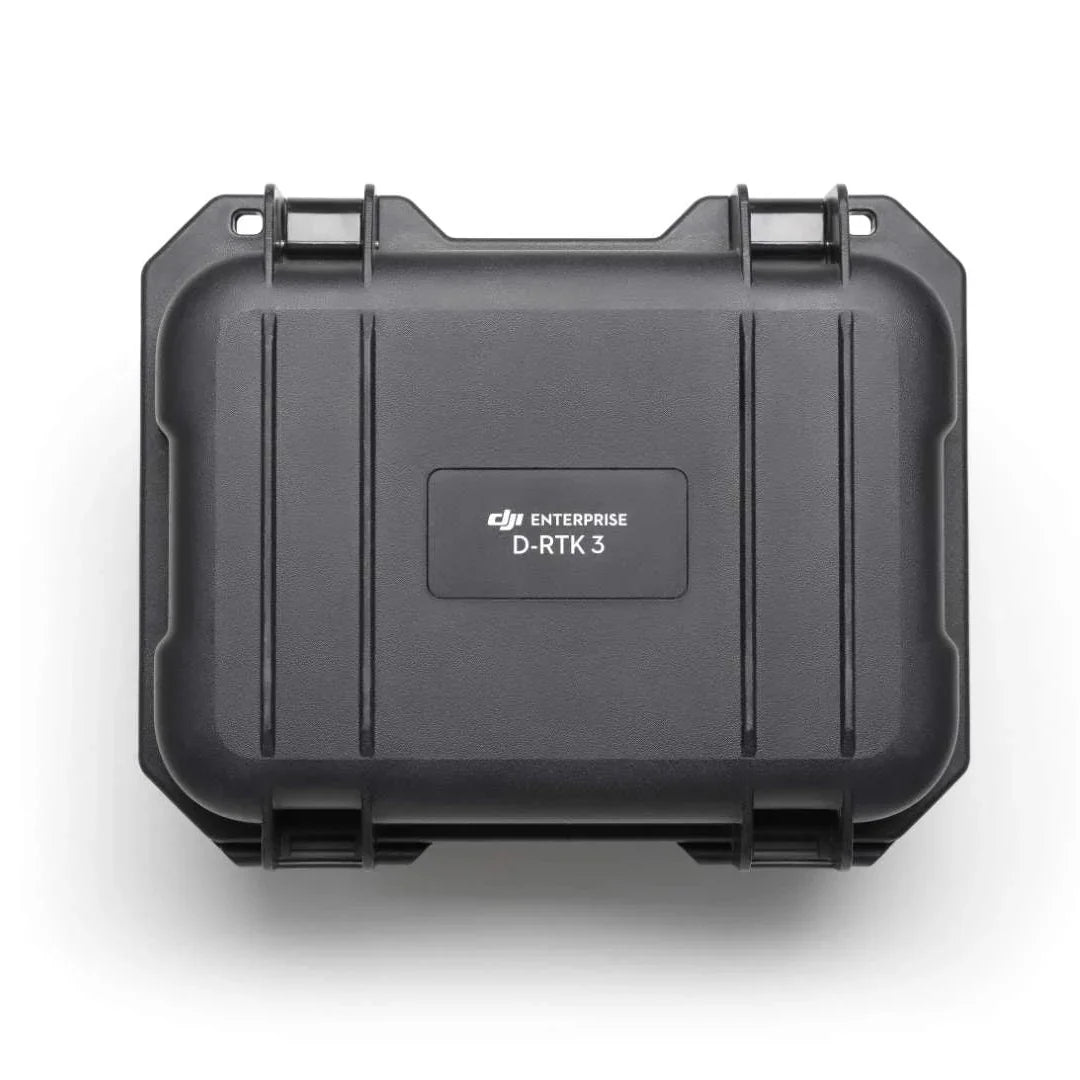

1x Carry Case

Base Station Mode: Supports Simultaneous Operation of Multiple Models

D-RTK 3 supports the new O4 Enterprise video transmission with four external directional antennas, enabling 15 km video transmission in base station broadcast mode while ensuring stable signals in all directions. Operators only need to set up one D-RTK 3 Multifunctional Station without additional configuration, allowing multiple drones to connect to the base station and access centimeter-level positioning.

Relay Station Mode: Break Through Limitations

Switch D-RTK 3 to Relay Station Mode and set it up at an elevated location in areas with significant signal obstructions, such as urban environments or valleys. This will enhance the video transmission distance and extend the operational range of the Matrice 4 series up to 25 kilometers.

Rover Station Mode: Flexible and Efficient

Besides serving as a base station, D-RTK 3 can also be used as a rover station to collect control point coordinates, enhancing the accuracy of UAV aerial survey and improving survey precision.

Stronger Performance, More Accurate Positioning

D-RTK 3 uses an air dielectric antenna with a filtering design, effectively tracking low-elevation satellites. The antenna phase-center accuracy is maintained within millimeter level, ensuring strong resistance to multipath interference and enabling high-precision positioning even in complex environments.

With its built-in receiver module, D-RTK 3 can receive satellite data from five major satellite systems across nineteen frequency points. Compared to network RTK, D-RTK 3 provides more accurate and stable positioning results under ionospheric effects.

Network High-Precision Calibration

D-RTK 3 can receive RTCM data and automatically obtain coordinates and correct positions through the network. When used outdoors, it can achieve centimeter-level precision positioning without pre-measuring the setup point location.

Supports Ground Control Point (GCP) Setup and Tilt Compensation

Install the new DJI Enterprise app on an Android device to measure ground control point coordinates without third-party tools. When used with DJI drones supporting RTK, the DJI solution can efficiently complete an entire high-precision surveying workflow.

D-RTK 3 has a built-in high-precision inertial measurement unit, allowing the control point to be measured when the pole is held at an angle without a tripod or ensuring the base station is vertical, significantly improving operational efficiency in complex measurement environments.

Supports Projection Coordinate Conversion

The new DJI Enterprise app includes a mainstream projection coordinate database, allowing direct output of planar coordinates.

One-Click Import, Time-Saving and Effortless

Rover measurement results can be exported as control point files via the DJI Enterprise app and imported into DJI Terra without the need for additional format adjustments. With powerful algorithms, high-precision results can be easily generated.

Supports Local PPK

D-RTK 3 supports recording raw satellite observations. When imported into DJI Terra version 4.4 or above along with data from the Matrice 4E, local PPK calculations can be performed with one click.

*All claims by DJI based on ideal conditions. Real world conditions may vary.
