DJI
DJI FPV Drone Combo
Choose options
DJI FPV Drone Combo
DJI FPV ACCESORIES
Overview
|
Immersive Flight Experience |
4K/60fps Super-Wide FOV |
HD Low-Latency Transmission |
|
Brand-New S Mode |
Intuitive Motion Controller |
Emergency Brake and Hover |
FPV Has Never Looked This Good
Sleek and aerodynamic, the DJI FPV aircraft delivers powerful propulsion, battery life, and wind resistance, making this system as capable as it is visually stunning.
DJI FPV stands out in more ways than one. Sporting front LEDs and aircraft arm lights with customizable-color, DJI FPV allows pilots to make their aircraft as unique as they are.
Next-Level Immersion. Unparalleled Control.
Feel the thrill of immersive flight provided by the DJI FPV Goggles V2 [1] and DJI FPV’s super-wide 150° FOV. [2] HD video transmission at up to 120fps gives you an ultra-smooth, real-time view of your flight.
|
150° Super-Wide Angle |
84° |
150° Super Wide Angle |
120fps Max Frame Rate |
Whether you’re a seasoned FPV pilot or a complete beginner, DJI FPV offers three intuitive flight modes that let anyone fly confidently from day one.
S Mode
Get the dynamic look of FPV footage easily in S mode. This hybrid flight mode combines the freedom of flying manually with the simplified controls of previous DJI drones.
N Mode
Ideal for new users, N mode offers immersive flight with traditional drone flight controls along with DJI safety features like obstacle sensing. [3]
M Mode
Fly in M mode for complete, limitless control and the full FPV flight experience. Customize parameters and enjoy flight and footage unlike anything else. [4]
DJI Motion Controller
Take your flight experience to new heights with the new DJI Motion Controller. This compact and intuitive device allows the aircraft to maneuver based on your natural hand motions. This isn’t just an FPV innovation. It’s an entirely new way to fly.
Emergency Brake and Hover
Even for experts, manual FPV flight can be intimidating. That’s why DJI FPV comes with an emergency brake and hover feature. Simply press this button on the remote controller while flying in any mode, at any speed, and the aircraft will stop and hover stably within a few seconds.
Advanced Safety Features
An auxiliary bottom light, Smart Return to Home (RTH), Low Battery RTH, and forward and downward obstacle sensing are all integrated into DJI FPV to help ensure a safe flight, even at high speeds. [3]
|
Auxiliary Bottom Light |
Forward Sensing |
Downward Sensing |
ToF |
The Imaging Power You Expect from DJI
Get results that match the intensity of your flights.
Powerful propulsion capabilities combined with a 150° super-wide FOV provide an unrivaled view. 4x Slow Motion, RockSteady stabilization, and distortion correction give pilots even smoother, more dramatic results.
Unreal Footage
The DJI FPV aircraft can record 4K/60fps video at up to 120 Mbps, capturing crisp details that make footage look as exhilarating as the flight.
|
120Mbps Bitrate |
|
4K/60fps Video |
RockSteady Stabilization
No matter how dynamic your maneuvers get, RockSteady EIS technology ensures your footage is ultra-smooth.
* H.264 and H.265 video coding formats are both supported, giving you more video editing options.
Meet O3
The DJI O3 (OcuSync 3.0) Transmission System was adapted to match the unique needs of DJI FPV. Enjoy crystal-clear real-time video transmission, even at distances of up to 10 km.
|
Video Transmission Latency 28 ms Video transmission latency of DJI FPV is lower than 28 ms. [6] |
Video Transmission Bitrate 50 Mbps Video transmission bitrate of DJI FPV goes up to 50 Mbps. |
Video Transmission Range 10 km DJI FPV supports an HD video transmission range up to 10 km. [7] |
Auto-Switching for Seamless Signal
DJI FPV supports auto-switching between 2.4 and 5.8GHz frequencies and provides a video transmission bitrate of up to 50 Mbps, [8] significantly reducing stutter and compression artifacts. High-gain antennas on the aircraft include three transmitters and four receivers to enhance signal, resulting in a stable, reliable video feed.
* If the signal is disconnected, DJI FPV will automatically enable fail-safe RTH.
An Optimized Experience
DJI FPV gives users an additional layer of safety with built-in Automatic Dependent Surveillance-Broadcast (ADS-B). This system receives flight location information of manned aircraft in your area and will send warnings on the Goggles V2, providing enough time to avoid any manned aircraft nearby. [1]
Easily Replaceable Parts
The gimbal camera, landing gear, and top shell of the DJI FPV aircraft are all modular and easily replaceable, making repairs more convenient. DJI Care Refresh is also available, offering coverage for a wide range of damage and giving you greater peace of mind as you fly. [9]
The DJI Virtual Flight App [10]
The DJI Virtual Flight app allows users to practice flying in lifelike, simulated scenarios before entering the real world. Simply connect the DJI FPV Goggles V2 and remote controller, and you’re ready to master flight in a risk-free virtual environment.
*Demo of DJI Virtual
Bring Someone Along with Audience Mode
DJI FPV supports Audience Mode. Just set other DJI FPV Goggles V2 units to your aircraft channel and you’re ready to share the view from above.
The DJI Fly App
|
Smartphone Live View |
Edit and Share |
Fly Spots [12] |
|
The DJI Fly app can display the live view from the goggles on a smartphone when connected via cable. [11] |
With the DJI Fly app, you can playback footage, edit, and share your work on social media, all with just a few taps. |
You can also discover popular aerial photography spots near you with the Fly Spots feature. |
It’s Ready to Fly and So Are You
Forget complicated wiring and assembly. The DJI FPV Combo offers everything you need, assembled and ready to go in one box. Simply turn on and activate the aircraft, remote controller, and goggles and go fly.
360° View of DJI FPV
360
Get a feel for what it is like to own DJI FPV in advance.
Click and drag the image to view.
AR
Take a closer look from every angle.
Use your iOS camera to scan the QR code for an AR preview of DJI FPV.
|
Eternal Green |
Void Grey |
Footnotes:
Tech Specs
| spec_key | spec_value |
| Sensor | 1/2.3” CMOS Effect pixels: 12 million |
| Lens | FOV: 150°<br> 35mm Format Equivalent: 14.66 mm<br> Aperture: f/2.8<br> Focus Mode: Fixed Focus<br> Focus Range: 0.6 m to ∞ |
| ISO | 100-12800 |
| Shutter Speed | 1/50-1/8000 s |
| Still Photography Modes | Single shot |
| Max Image Size | 3840×2160 |
| Photo Format | JPEG |
| Video Resolution | 4K: 3840×2160 at 50/60fps<br> FHD: 1920×1080 at 50/60/100/120fps<br> |
| Video Formats | MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC） |
| Max Video Bitrate | 120 Mbps |
| Color Profile | Standard, D-Cinelike |
| RockSteady EIS | Available |
| Distortion Correction | Available |
| Supported File Formats | exFAT (recommended)<br> FAT32 <br> |
| Mechanical Range | Tilt: -65° to 70° |
| Controllable Range | Tilt: -50° to 58° |
| Stabilization | Single-axis (tilt), electronic roll axis |
| Max Control Speed | 60°/s |
| Angular Vibration Range | ±0.01° (N mode) |
| Electronic Roll Axis | Available (can stabilize footage when the aircraft is tilted at angles of up to 10°) |
| Takeoff Weight | Approx. 795 g |
| Dimensions | 255×312×127 mm (with propellers) <br> 178×232×127 mm (without propellers) |
| Diagonal Distance | 245 mm |
| Max Ascent Speed | M mode: No limit <br>S mode: 15 m/s <br>N mode: 8 m/s |
| Max Descent Speed | M mode: No limit <br>S mode: 10 m/s <br>N mode: 5 m/s |
| Max Speed | 140 kph; M mode: 39 m/s (27 m/s in Mainland China)<br> S mode: 27 m/s <br> N mode: 15 m/s |
| Max Acceleration | 0-100 kph: 2 s (in ideal conditions while flying in M mode) |
| Max Service Ceiling Above Sea Level | 6,000 m |
| Max Flight Time | Approx. 20 mins (measured while flying at 40 kph in windless conditions) |
| Max Hover Time | Approx. 16 mins (measured when flying in windless conditions) |
| Max Flight Distance | 16.8 km (measured while flying in windless conditions) |
| Max Wind Speed Resistance | 39-49 kph (25-31 mph) |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz<br> FCC: ≤ 31.5dBm<br>CE: ≤ 20 dBm<br>SRRC: ≤ 20 dBm<br>MIC: ≤ 20 dBm<br><br> 5.725-5.850 Ghz<br> FCC: ≤ 31.5 dBm<br>CE: ≤ 14 dBm<br>SRRC: ≤ 25.5 dBm |
| Number of Antennas | Four |
| GNSS | GPS+GLONASS+GALILEO |
| Hovering Accuracy Range | Vertical: <br> ±0.1 m (with Vision Positioning)<br> ±0.5 m (with GPS positioning)<br><br> Horizontal: <br> ±0.3 m (with Vision Positioning)<br> ±1.5 m (with GPS positioning) |
| Supported SD Cards | microSD (up to 256 GB) |
| Internal Storage | N/A |
| Forward | Precision Measurement Range: 0.5-18 m <br> Obstacle Sensing: Available in N mode only FOV: 56° (horizontal), 71° (vertical) |
| Downward (dual vision sensors + TOF) | TOF Effective Sensing Height: 10 m <br> Hovering Range: 0.5-15 m <br> Vision Sensor Hovering Range: 0.5-30 m<br> |
| Downward Auxillary Light | Single LED |
| Operating Environment | Refers to non-reflective, discernible surfaces<br>Diffuse reflectivity >20% (e.g. walls, trees, people)<br> Adequate lighting conditions (lux >15 in normal indoor lighting conditions) |
| Input | 100-240 V, 50/60 Hz, 1.8 A |
| Output | Battery charging interface: <br> 25.2 V ± 0.1 V<br> 3.57 A ± 0.1 A (high current)<br>1 A ± 0.2 A (low current)<br><br> USB Port: <br>5V/2A (×2) |
| Rated Power | 90 W |
| Battery Capacity | 2000 mAh |
| Voltage | 22.2 V |
| Max Charging Voltage | 25.2 V |
| Battery Type | LiPo 6S |
| Energy | 44.4 Wh@0.5C |
| Discharge Rate | Standard: 10C <br> |
| Weight | 295 g |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
| Max Charging Power | 90 W |
| Operating Frequency | 2.400-2.4835 GHz<br> 5.725-5.850 GHz |
| Communication Bandwidth | 40 MHz (Max.) |
| Live View Mode | Low-Latency Mode: 810p/120fps ≤ 28ms High-Quality Mode: 810p/60fps ≤ 40ms |
| Max Video Bitrate | 50 Mbps |
| Transmission Range | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
| Audio Transmission Support | Yes |
| Weight | Approx. 420 g (headband and antennas included) |
| Dimensions | 184×122×110 mm (antennas excluded) <br> 202×126×110 mm (antennas included) |
| Screen Size | 2-inches (×2) |
| Screen Refresh Rate | 144 Hz |
| Communication Frequency <sup>[1]</sup> | 2.400-2.4835 GHz<br> 5.725-5.850 GHz |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz<br> FCC: ≤ 28.5 dBm<br>CE: ≤ 20 dBm<br>SRRC: ≤ 20 dBm<br>MIC: ≤ 20 dBm<br><br> 5.725-5.850 GHz<br> FCC: ≤ 31.5 dBm<br>CE: ≤ 14 dBm<br>SRRC: ≤ 19 dBm |
| Communication Bandwidth | 40 MHz (Max.) |
| Live View Mode | Low-Latency Mode: 810p/120fps ≤ 28ms*<br> High-Quality Mode: 810p/60fps ≤ 40ms*<br> * A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°. |
| Max Video Bitrate | 50 Mbps |
| Transmission Range <sup>[2]</sup> | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
| Video Format | MP4 (Video format: H.264) |
| Supported Video and Audio Playback Formats | MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3） |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Power Input | Dedicated DJI Goggles batteries or other 11.1.-25.2 V batteries. |
| FOV | FOV: 30° to 54°; Image size: 50-100% |
| Interpupillary Distance Range | 58-70 mm |
| Supported microSD Cards | microSD (up to 256 GB) |
| Capacity | 1800 mAh |
| Voltage | 9 V (Max.) |
| Type | LiPo 2S |
| Energy | 18 Wh |
| Charging Temperature | 0° to 45° C |
| Max Charging Power | 10 W |
| Battery Life | Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level) |
| Operating Frequency | 2.400-2.4835 GHz<br> 5.725-5.850 GHz |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz<br> FCC: ≤ 28.5 dBm<br>CE: ≤ 20 dBm<br>SRRC: ≤ 20 dBm<br>MIC: ≤ 20 dBm<br><br> 5.725-5.850 GHz<br> FCC: ≤ 31.5 dBm<br>CE: ≤ 14 dBm<br>SRRC: ≤ 19 dBm |
| Max. Transmission Distance | 10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
| Gimbal Dimensions | 190×140×51 mm |
| Weight | 346 g |
| Battery Life | Approx. 9 hours |
| Charging Time | 2.5 hours |
| Model | FC7BMC |
| Weight | 167 g |
| Operating Frequency Range | 2.400-2.4835 GHz; 5.725-5.850 GHz |
| Max Transmission Distance (unobstructed, free of interference) | 10 km (FCC), 6 km (CE/SRRC/MIC) |
| Transmitter Power (EIRP) | 2.4 GHz: ≤28.5 dBm (FCC), ≤20 dBm (CE/ SRRC/MIC) 5.8 GHz: ≤31.5 dBm (FCC), ≤19 dBm (SRRC), ≤14 dBm (CE) |
| Operating Temperature Range | -10° to 40° C (14° to 104° F) |
| Battery Life | 300 minutes |
| Supported microSD cards | Max 256 GB UHS-I Speed Grade 3 |
| Recommended microSD cards | SanDisk High Endurance U3 V30 64GB microSDXC<br> SanDisk Extreme PRO U3 V30 A2 64GB microSDXC<br> SanDisk Extreme U3 V30 A2 64GB microSDXC<br> SanDisk Extreme U3 V30 A2 128GB microSDXC<br> SanDisk Extreme U3 V30 A2 256GB microSDXC<br> Lexar 667x V30 128GB microSDXC<br> Lexar High Endurance 128GB U3 V30 microSDXC<br> Samsung EVO U3 (Yellow) 64GB microSDXC<br> Samsung EVO Plus U3 (Red) 64GB microSDXC<br> Samsung EVO Plus U3 256GB microSDXC<br> Netac 256GB U3 A1 microSDXC |
| Footnotes | 1. Due to local policy and regulation restrictions, the 5.8 GHz frequency band is currently banned in certain countries, including but not limited to Japan, Russia, Israel, Ukraine, and Kazakhstan. Please use the 2.4 GHz frequency band when operating in these locations. Always check local rules and regulations before use, as they may change over time.<br><br> 2. Maximum flight range specification is a proxy for radio link strength and resilience, not aircraft battery capability. It only refers to the maximum, one-way flight distance. Data was measured in an open environment without interference. Please pay attention to the return prompt on the DJI Fly app during actual flight. Refer to the following applicable standard in different countries and regions:<br> FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions;<br> SRRC: Mainland China;<br> CE: UK, Russia, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions;<br> MIC: Japan. |

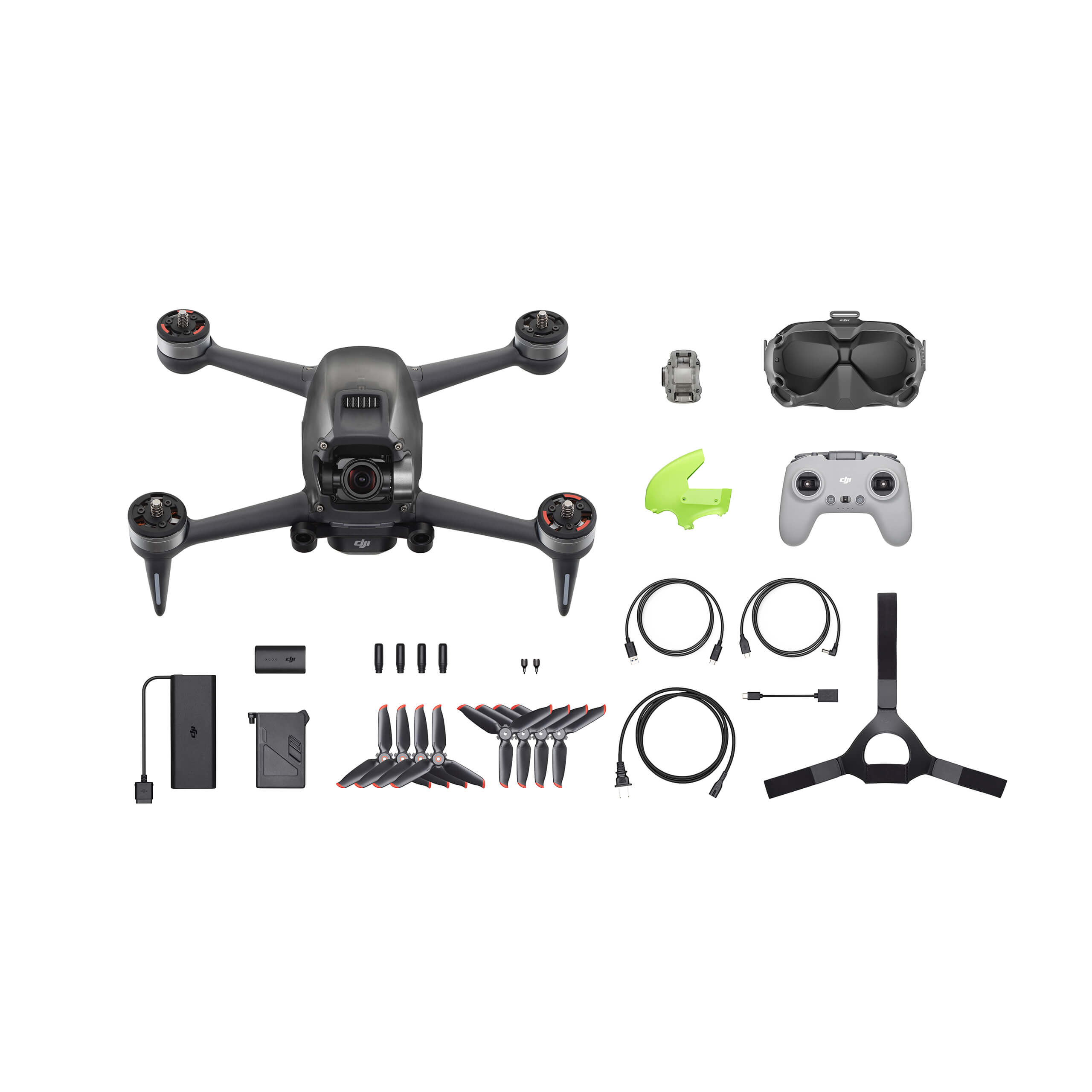

In The Box
DJI FPV Intelligent Flight Battery × 1
DJI FPV Propellers (Pair) × 4
DJI FPV Gimbal Protector × 1
DJI FPV Top Shell × 1
DJI FPV Remote Controller 2 × 1
Spare Control Sticks (Pair) × 1
DJI FPV Goggles V2 × 1
DJI FPV Goggles Antenna (Dual Band) × 4
DJI FPV Goggles Battery × 1
DJI FPV Goggles Power Cable (USB-C) × 1
DJI FPV Goggles Headband × 1
DJI FPV Goggles Foam Padding × 1
DJI FPV AC Power Adapter × 1
DJI FPV AC Power Cable × 1
USB-C Data Cable × 1
USB-C OTG Cable × 1
F.A.Q.
Compatibility:
DJI FPV Goggles V2
DJI FPV Remote Controller 2
No.
Yes. DJI FPV is compatible with the DJI Motion Controller.
Check the latest firmware updates for any new information on goggle compatibility.
Yes. DJI FPV has a downward LED auxiliary light.
Yes. It uses GPS+GLONASS+GALILEO.
N mode and S mode support auto-hovering through the use of the VIO+TOF+GPS system.
The DJI FPV aircraft comes with forward and downward vision sensors that can automatically detect objects and decelerate when flying in N mode. However, there is no automatic avoidance function. When obstacles are detected, the aircraft will slow down but will not stop completely unless controlled to do so by the pilot.
3840×2160 and JPEG.
MP4/MOV.
A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°.
It supports D-Cinelike.
H.264 and H.265.
Yes.
In High-quality mode, it supports up to 4K/60fps video. In Low-Latency mode, it supports up to 1080p/120fps video.
No. You can connect it to a computer via USB-C cable to read the microSD card, or launch DJI Assistant 2 for firmware updates.
When DJI FPV is used frequently within a short amount of time and there is no signal interference, it takes about 20 seconds to search for and locate a GPS signal. If DJI FPV is not used frequently, this process may take longer. Users are not recommended to fly until there are a sufficient number of GPS satellites located.
DJI FPV has a 10km maximum transmission distance (FCC: 10 km, SRRC: 6 km, MIC: 6 km, CE: 6 km) when unobstructed, free of interference, and FCC-compliant.
Note: Maximum flight range specification is a proxy for radio link strength and resilience, not aircraft battery capability.
