DJI Matrice 400

The DJI Matrice 400 stands as a premier enterprise drone platform, offering up to 59 minutes of flight time and a maximum payload of 6 kg. Equipped with integrated rotating LiDAR and mmWave radar, it delivers precise obstacle detection at power-line level. Featuring O4 Enterprise Enhanced Video Transmission and Airborne Relay Video Transmission, it enhances operational safety and control. Its combination of Smart Detection with visible and thermal imaging, AR projection, ship-based takeoff and landing, and advanced automation makes it ideal for emergency response, power line inspections, mapping, and architecture, engineering, and construction applications.

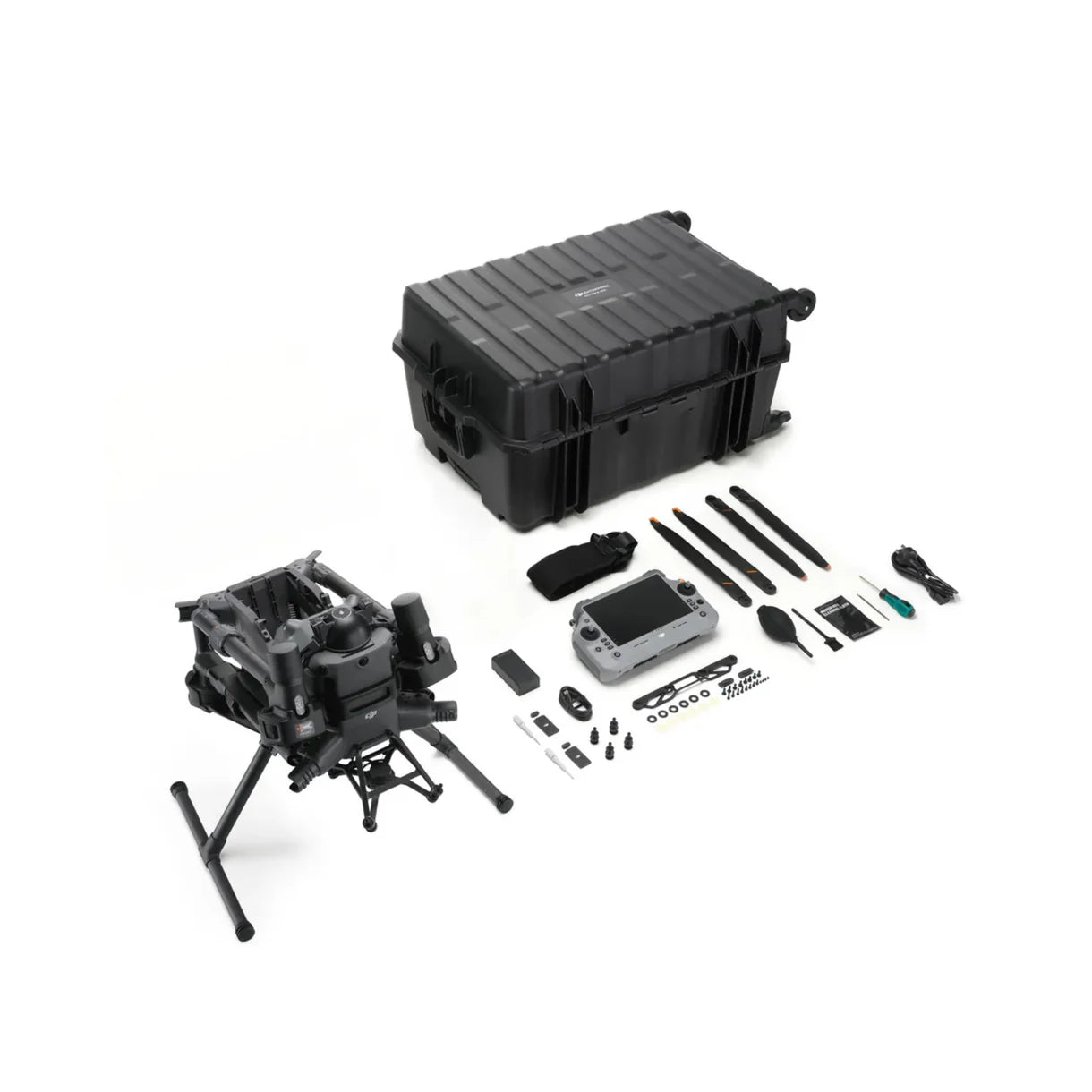

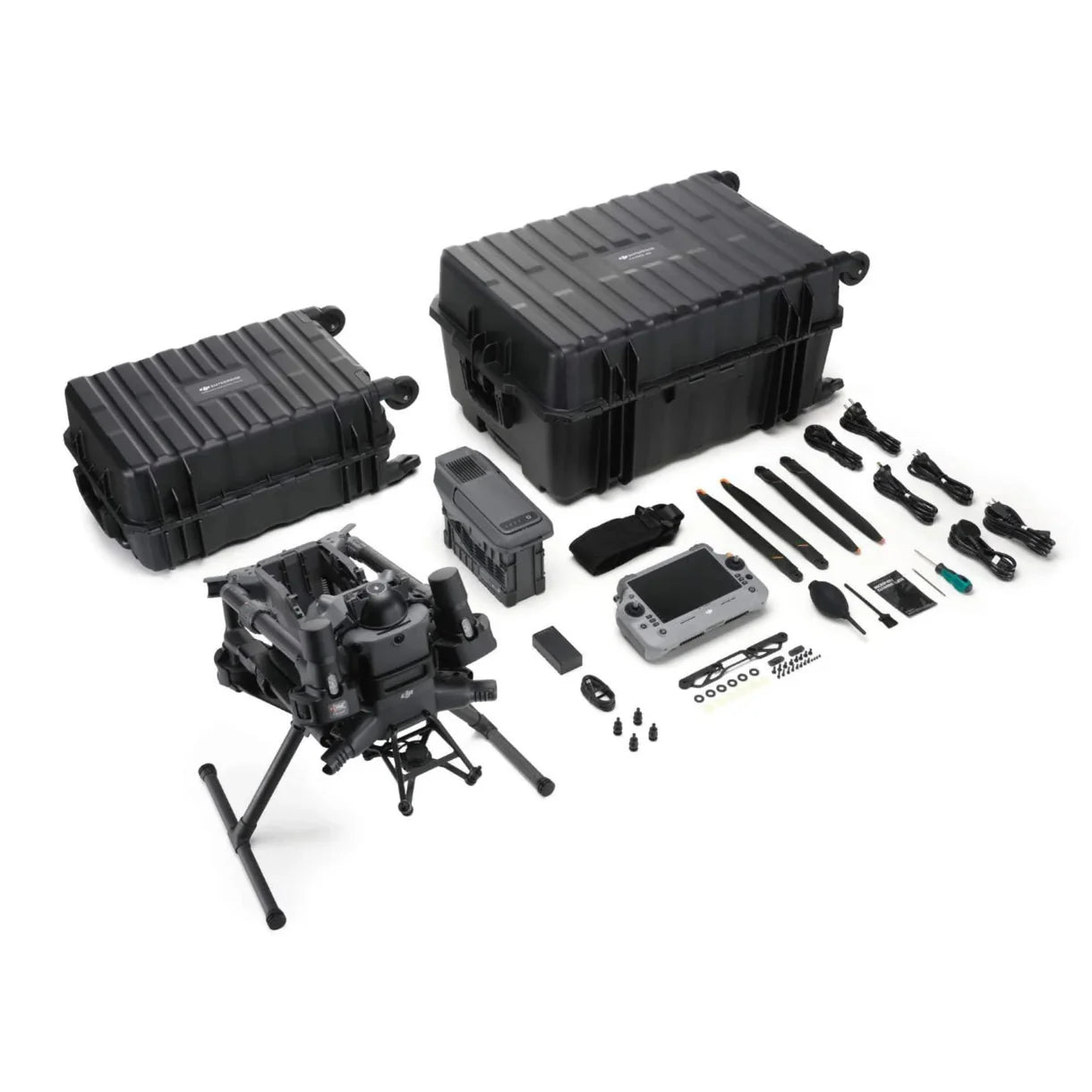

Note: Photos do not reflect all packages. Please contact us for pricing and availability.

Extended Flight Time, High Speed Performance

The Matrice 400 delivers exceptional flight performance, providing up to 59 minutes of forward flight time with a payload and up to 53 minutes of hover time. These features ensure dependable operation for extended missions such as search and rescue, firefighting, and extensive mapping projects. Additionally, it can navigate around substantial obstacles like buildings and mountains while flying at speeds up to 25 m/s.

Multi-Payload, Multi-Scene

Matrice 400’s strong payload capacity allows it to easily meet the demands of a wide range of applications. With a maximum payload capacity of 6 kg Matrice 400 supports seamless switching between a single downward gimbal and a dual downward gimbal It also features a third gimbal connector on the underside for additional flexibility. The aircraft is equipped with 4 external E-Port V2 ports, enabling simultaneous mounting of up to 7 payloads.

Built for Challenging Conditions

Matrice 400 has a protection rating of IP55, allowing it to operate reliably in challenging conditions including heavy dust or rain. It also maintains stable performance across temperatures from -20° to 50° C (-4° to 122° F), delivering consistent results in both hot and cold conditions.

Power-Line-Level Obstacle Sensing

The Matrice 400's advanced obstacle sensing system integrates rotating LiDAR, high-precision mmWave radar, and full-colour low-light fisheye vision sensors, pushing detection capabilities to unprecedented levels. The system detects even small obstacles like high-voltage power lines across mountainous terrain — even in darkness. It can penetrate rain and fog to sense its surroundings, providing enhanced safety in challenging weather conditions.

O4 Enterprise Enhanced Video Transmission System

Thanks to the ten-antenna system on the aircraft and the high-gain phased array antenna system on the remote controller, the O4 Enterprise Enhanced Video Transmission System can achieve image transmission up to 40 km.

Airborne Relay Video Transmission

Matrice 400 has a built-in video transmission relay module. With this setup, one Matrice 400 can serve as a relay drone, flying high to provide relay signals for another Matrice 400 operating at a greater distance. This capability significantly extends the transmission range, making it ideal for search and rescue tasks as well as inspections in mountainous areas.

Aircraft Fusion Positioning

The omnidirectional sensing performance brought by rotating LiDAR, high-precision mm Wave radar, and full-colour low-light fisheye vision sensors provides Matrice 400 with strong positioning capabilities. It can fly stably close to glass-facade buildings or wind turbine blades and safely return from building edges, mountain bases, or bridge sides even when the return point has not been updated.

Full-Colour Vision Assist

The four full-colour low-light fisheye vision sensors on the aircraft provide Full-Colour Vision Assist  to ensure safer flight.

Smart Detection

With Zenmuse H30 Series' visible and thermal imaging, Matrice 400 can detect vehicles, vessels, and subjects during search and rescue operations or routine flights. It also supports switching to other models, enabling the expansion of application scenarios. Additionally, it supports high-res grid photos and features powerful tracking capabilities.

Real-Time Terrain Follow

Matrice 400 supports Real-Time Terrain Follow flight in any horizontal direction. This feature can be enabled during both manual flight and automated flight routes, ensuring stable relative height to the ground. During large-scale search and rescue operations, the size of ground subjects can be kept consistent on the remote controller screen, reducing the need for frequent zoom adjustments and improving efficiency. During mapping missions, a consistent ground sampling distance (GSD) can be maintained to obtain high-precision mapping data.

Takeoff and Landing on Ships

To address the needs of offshore operations such as maritime patrol and wind turbine inspection, Matrice 400 is equipped with the capability to take off from and land on ships, supporting takeoff from stationary vessels and landing on moving vessels. By detecting landing point patterns on the deck, it can achieve safe and precise landings.
