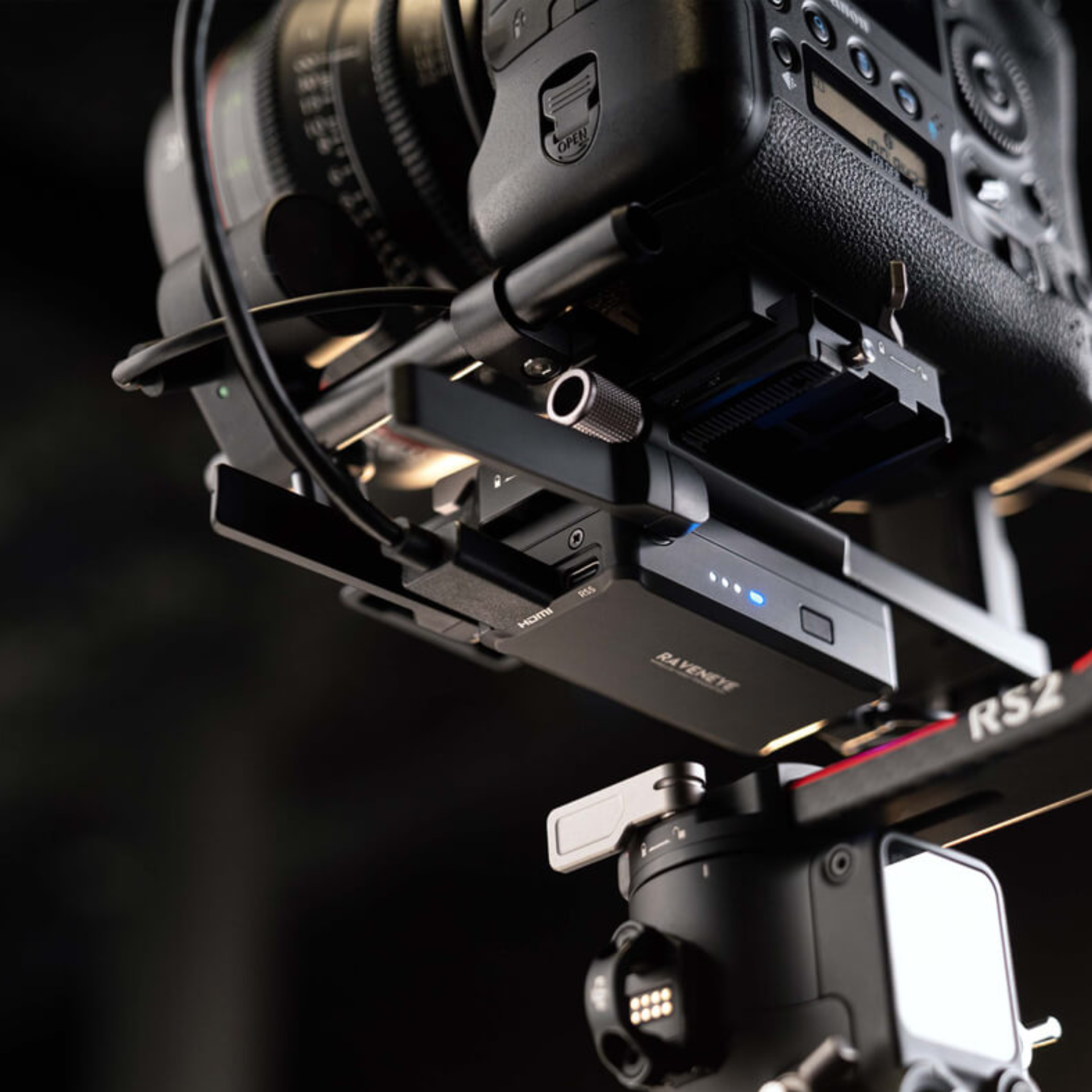

With the DJI Ronin Image Transmitter, the following functions are supported: ActiveTrack 3.0, Force Mobile, remote gimbal control with virtual joystick, manual focus, gimbal parameter adjustments, camera exposure adjustments, and more. Connect the DJI Ronin Image Transmitter to the camera via HDMI cable and to the smartphone via Wi-Fi to check the live camera view on the Ronin app. When using the DJI Ronin Image Transmitter with DJI RS 4 Pro/DJI RS 2/DJI RS 3 Pro, you can also check the live camera view on the built-in screen of the gimbal.
Note: When using the DJI Ronin Image Transmitter with DJI RS 4/DJI RS 3/DJI RSC 2, live camera view is not supported on the built-in screen of the gimbal. You can check the live camera view on the Ronin app.
Package Includes:
1x Image Transmitter
1x Cold Shoe to 1/4''-20 Adapter
1x USB-C Charging Cable (40 cm)
1x USB-C Power Cable (20 cm)
1x Mini-HDMI to HDMI Cable (20 cm)
1x Mini-HDMI to Mini-HDMI Cable (20 cm)
1x Mini-HDMI to Micro-HDMI Cable (20 cm)
2x M4 Screw
1x Allen Wrench (3 mm)
Specifications:
Working Frequency: 2.400-2.4835 GHz，5.725-5.850 GHz
Weight: 126 g
Dimensions: 82 mm x 63 mm x 24 mm
Transmission Power (EIRP):
2.400-2.4835 GHz:
＜25dBm (FCC)
＜20dBm (CE/SRRC/MIC)
5.725-5.850 GHz:
＜25dBm (FCC/SRRC)
＜14dBm(CE)
Compatibility:
DJI RS 4 Pro
DJI RS 4
DJI RS 3 Pro
DJI RS 3
DJI RS 2
DJI RSC 2
