DJI

Zenmuse L1 (Rental)

$495.00
Duration:1 Day
Quantity:

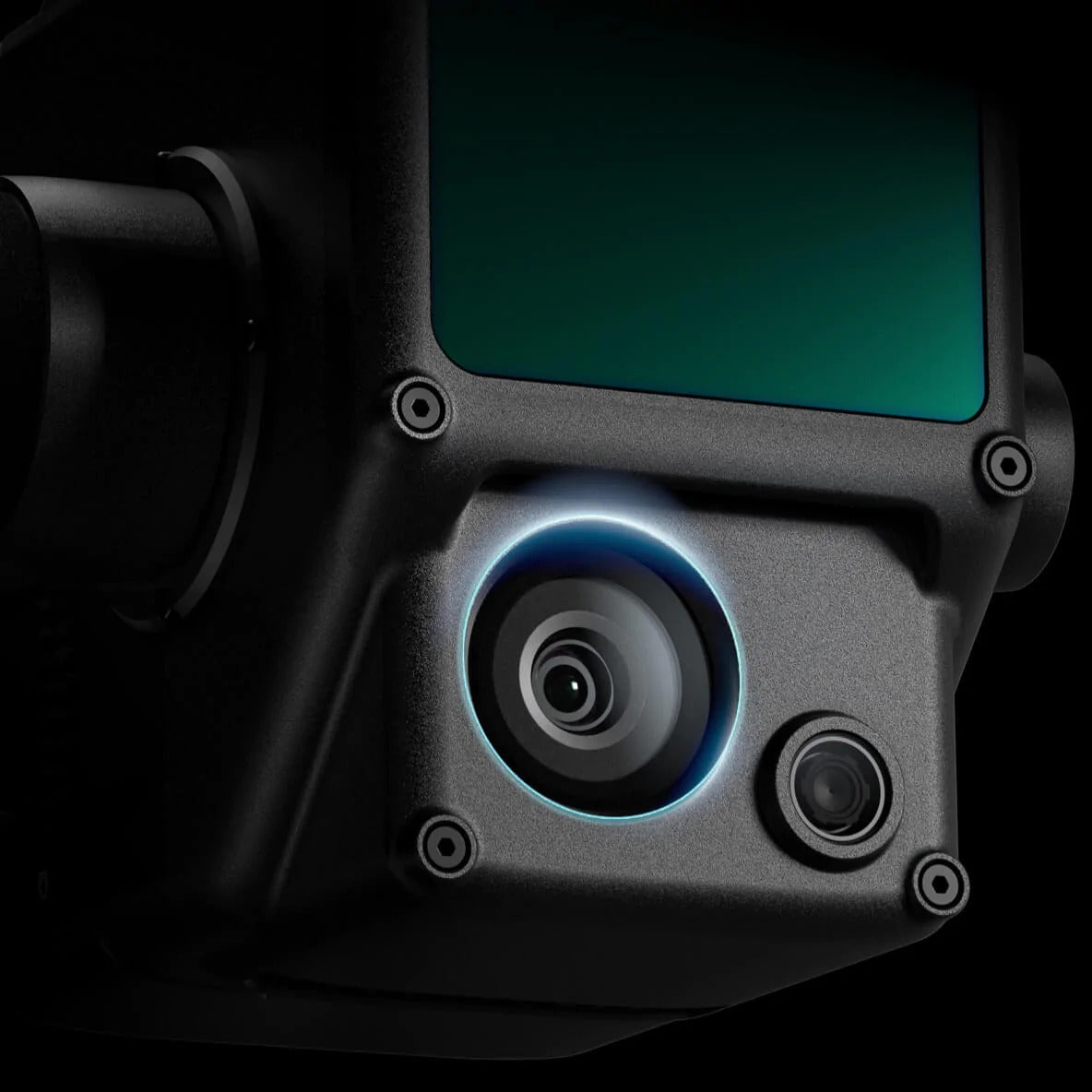

The Zenmuse L1 integrates a Livox Lidar module, a high-accuracy IMU, and a camera with a 1-inch CMOS on a 3-axis stabilized gimbal. When used with Matrice 300 RTK and DJI Terra, the L1 forms a complete solution that gives you real-time 3D data throughout the day, efficiently capturing the details of complex structures and delivering highly accurate reconstructed models.

Note: This is a rental.

No DJI Terra Included.

Watch video

Integrates a Lidar module, an RGB camera, and a high-accuracy IMU High Efficiency 2 km2 covered in a single flight [1] High Accuracy Vertical Accuracy: 5 cm / Horizontal Accuracy: 10 cm [2] Point Rate: 240,000 pts/s Supports 3 Returns [3] Detection Range: 450 m (80% reflectivity, 0 klx) IP44 Ingress Protection Level Point Cloud LiveView

DIGITIZE WITHOUT COMPROMISE

EXCEPTIONAL EFFICIENCY

Generate true-color point cloud models in real-time, or acquire 2 km2 of point cloud data in a single flight [1] using the Livox frame Lidar module with a 70° FOV and a visible light camera with a 1-inch sensor.

UNPARALLELED ACCURACY

Render centimeter-accurate reconstructions thanks to the high-accuracy IMU, a vision sensor for positioning accuracy, and the incorporation of GNSS data.

READY WHEN YOU ARE

The IP44 rating allows the L1 to be operated in rainy or foggy environments. The Lidar module’s active scanning method enables you to fly at night.

VISUALIZE DATA AS YOU FLY

LIVOX LIDAR MODULE

  • Frame Lidar with up to 100% effective point cloud results
  • Detection Range: 450m (80% reflectivity, 0 klx) / 190 m (10% reflectivity, 100 klx)
  • Effective Point Rate: 240,000 pts/s
  • Supports 3 Returns [3]
  • Line Scan Mode and Non-repetitive Scan Mode

EVERYTHING IN VIEW

RGB CAMERA

  • 20MP
  • 1-inch CMOS
  • Mechanical Shutter

ACCURATE DETAILS AT YOUR DISPOSAL

HIGH-ACCURACY IMU

  • Accuracy: 0.025° (roll/pitch) / 0.08° (yaw)
  • Vision Sensor for Positioning Accuracy
  • GNSS, IMU, RGB Data Fusion

RECREATE THE WORLD IN 3D POINT CLOUDS

POINT CLOUD LIVEVIEW

Real-time point clouds provide immediate insights onsite, so operators are informed to make critical decisions quickly. You can also verify fieldwork quality by checking point cloud data immediately after each flight.

MEASUREMENT AND ANNOTATION

Acquire and communicate critical dimensions on the point cloud model using measurements and annotations.

ONE-STOP POST-PROCESSING

DJI Terra fuses the IMU and GNSS data for point cloud and visible light calculations, in addition to conducting POS data calculations so you can effortlessly generate reconstructed models and accuracy reports.

APPLICATION SCENARIOS

TOPOGRAPHIC MAPPING

Quickly generate topographic maps using accurate digital elevation models.

Learn more

AEC AND SURVEYING

Manage the full project lifecycle using highly accurate point clouds and 3D models.

Learn more

EMERGENCY RESPONSE

Any time of the day, gather critical insights in real-time using true-color point clouds.

Learn more

LAW ENFORCEMENT

Gain situational awareness and forensic intel in real-time to make informed decisions on site.

Learn more

ENERGY AND INFRASTRUCTURE

Model sparse or complex structures in detail to manage them efficiently and safely.

Learn more

AGRICULTURE AND FORESTRY MANAGEMENT

Gain insight into vegetation density, area, stock volume, canopy width, and growth trends.

Learn more



SPECIFICATIONS

GENERAL

  • PRODUCT NAME - Zenmuse L1

  • DIMENSIONS - 152×110×169 mm

  • WEIGHT - Approx. 900 g

  • POWER - 30 W

  • IP RATING - IP44

  • SUPPORTED AIRCRAFT - Matrice 300 RTK

  • OPERATING TEMPERATURE RANGE - {-20° to 50° C (-4° to 122° F)}

  • STORAGE TEMPERATURE RANGE - {-20° to 60° C (-4° to 140° F)}

SYSTEM PERFORMANCE

  • DETECTION RANGE - 450 m @ 80% reflectivity, 0 klx; 190 m @ 10% reflectivity, 100 klx

  • POINT RATE - Single return: 240,000 pts/s; Multiple return: 480,000 pts/s

  • SYSTEM ACCURACY - Horizontal: 10 cm @ 50 m; Vertical: 5 cm @ 50 m

  • REAL-TIME POINT CLOUD COLORING MODES - True color; coloring by reflectivity; coloring by elevation

LIDAR

  • RANGING ACCURACY - 3 cm @ 100 m

  • MAXIMUM RETURNS SUPPORTED - 3

  • SCAN MODES - Repetitive line scan mode, non-repetitive petal scan mode

  • FOV - Repetitive line scan: 70.4°×4.5°； Non-repetitive scan: 70.4°×77.2°

  • LASER SAFETY - Class 1

INERTIAL NAVIGATION SYSTEM

  • IMU UPDATE FREQUENCY - 200 Hz

  • ACCELEROMETER RANGE - ±8 g

  • ANGULAR VELOCITY METER RANGE - ±2000 dps

  • YAW ACCURACY - Real-time: 0.18°, Post-processing: 0.08°

  • PITCH / ROLL ACCURACY - Real-time: 0.03°, Post-processing: 0.025°

AUXILIARY POSITIONING VISION SENSOR

  • RESOLUTION - 1280×960

  • FOV - 95°

RGB MAPPING CAMERA

  • SENSOR SIZE - 1 inch

  • EFFECTIVE PIXELS - 20 MP

  • PHOTO SIZE - 4864×3648 (4:3); 5472×3648 (3:2)

  • FOCAL LENGTH - 8.8 mm / 24 mm (Equivalent)

  • SHUTTER SPEED - Mechanical Shutter Speed: 1/2000 - 8 s Electronic Shutter Speed: 1/8000 - 8 s

  • ISO - Video: 100 – 3200 (Auto), 100 – 6400 (Manual) Photo: 100 - 3200 (Auto), 100 - 12800 (Manual)

  • APERTURE RANGE - f/2.8 - f/11

GIMBAL

  • STABILIZED SYSTEM - 3-axis (tilt, roll, pan)

  • ANGULAR VIBRATION RANGE - 0.01°

  • MOUNT - Detachable DJI SKYPORT

  • MECHANICAL RANGE - Tilt: -120° to +30°; Pan: ±320°

  • OPERATION MODES - Follow/Free/Re-center

DATA STORAGE

  • RAW DATA STORAGE - Photo/IMU/Point cloud data storage

  • POINT CLOUD DATA STORAGE - Real-time modeling data storage

  • SUPPORTED MICROSD CARDS - microSD: Class 10 or UHS-1 rating or above; Max capacity: 256 GB

POST-PROCESSING SOFTWARE

  • SUPPORTED SOFTWARE - DJI Terra

  • DATA FORMAT - DJI Terra supports exporting standard format point cloud models: Point cloud format: PNTS/LAS/PLY/PCD/S3MB format Reconstruction model format: B3DM/OSGB/PLY/OBJ/S3MB format
