Phantom 4 RTK + D-RTK 2 Mobile Station Combo (SP)

Sale price$11,598.55
Quantity:



Overview



Mapping and Surveying has never been convenient until now.

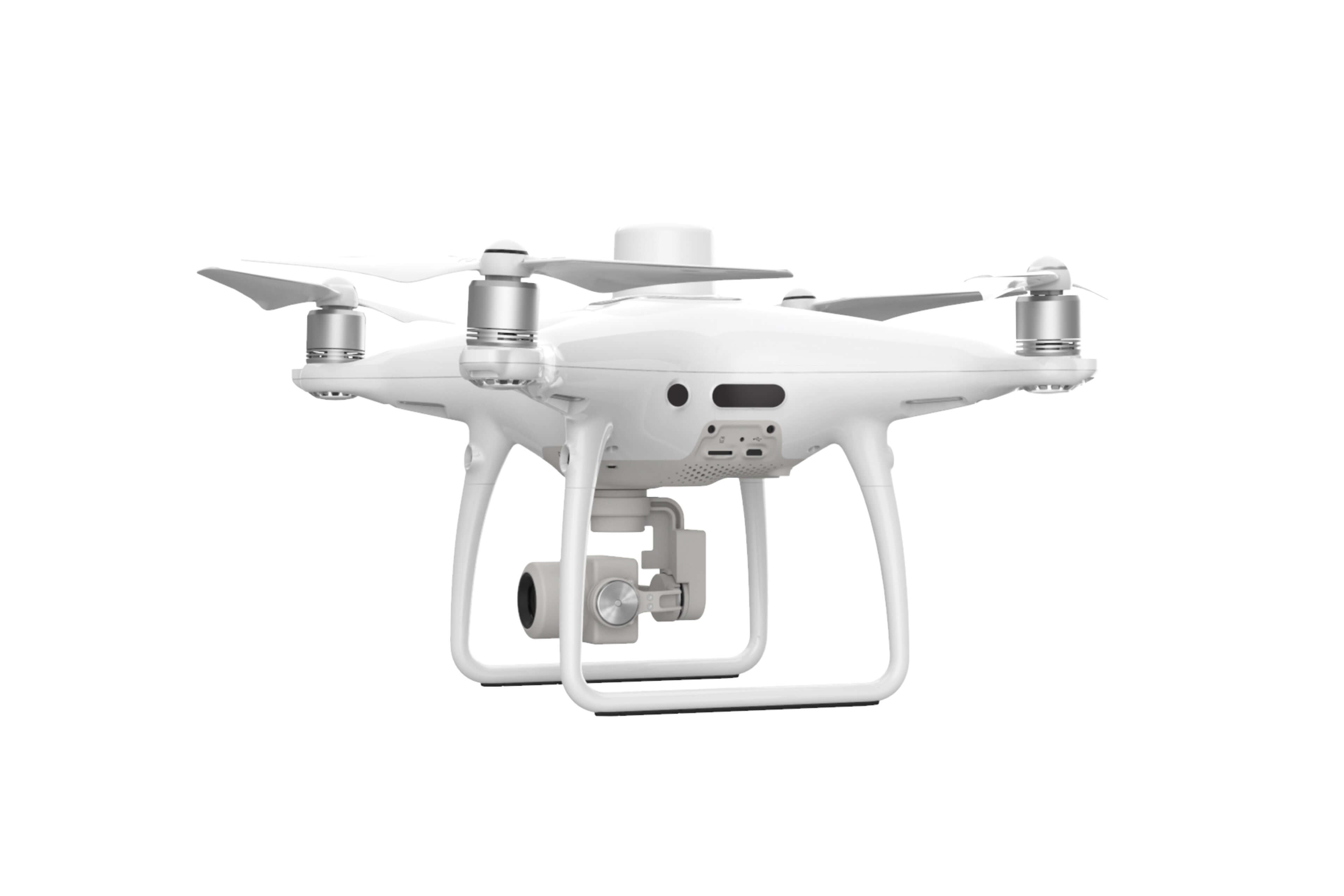

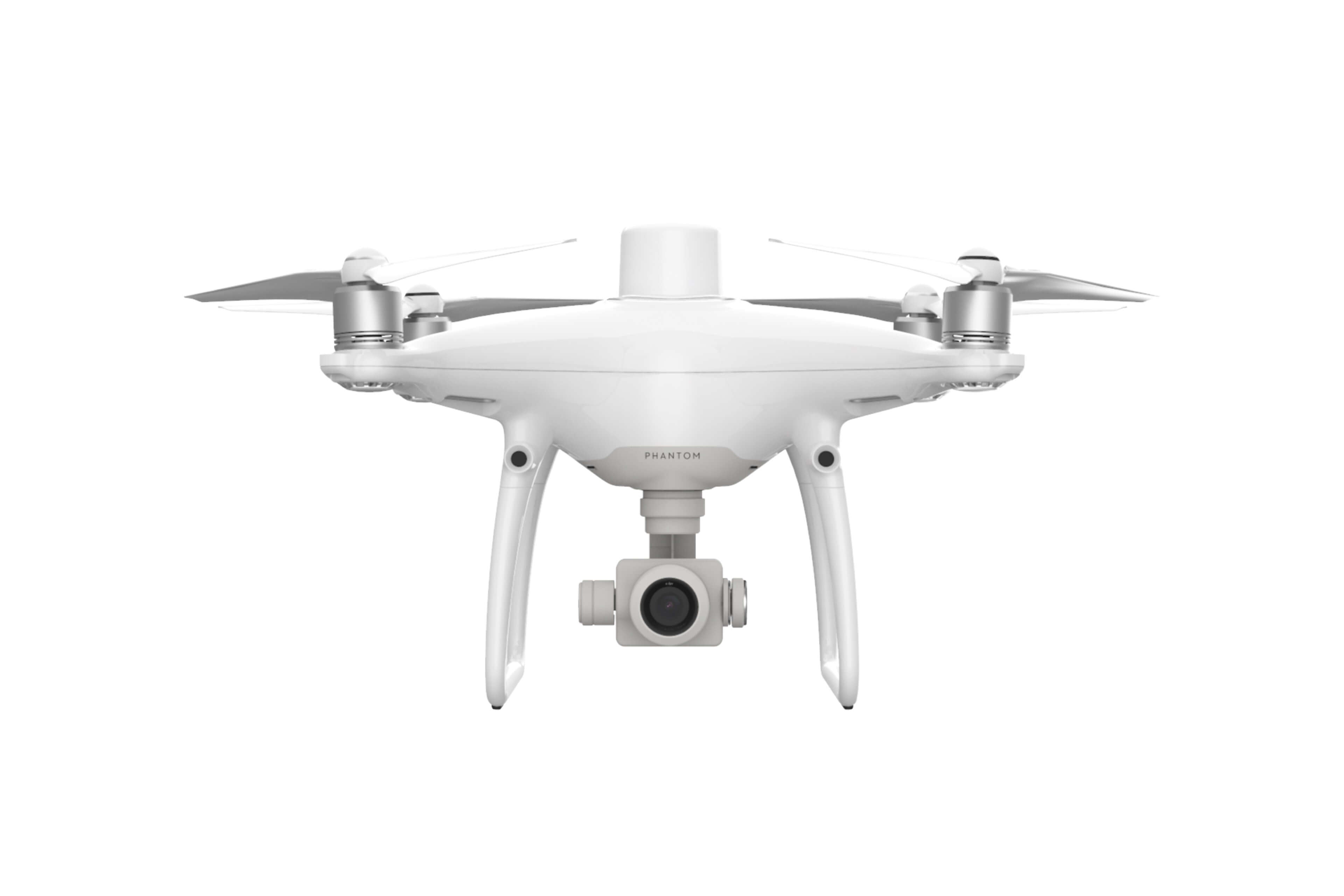

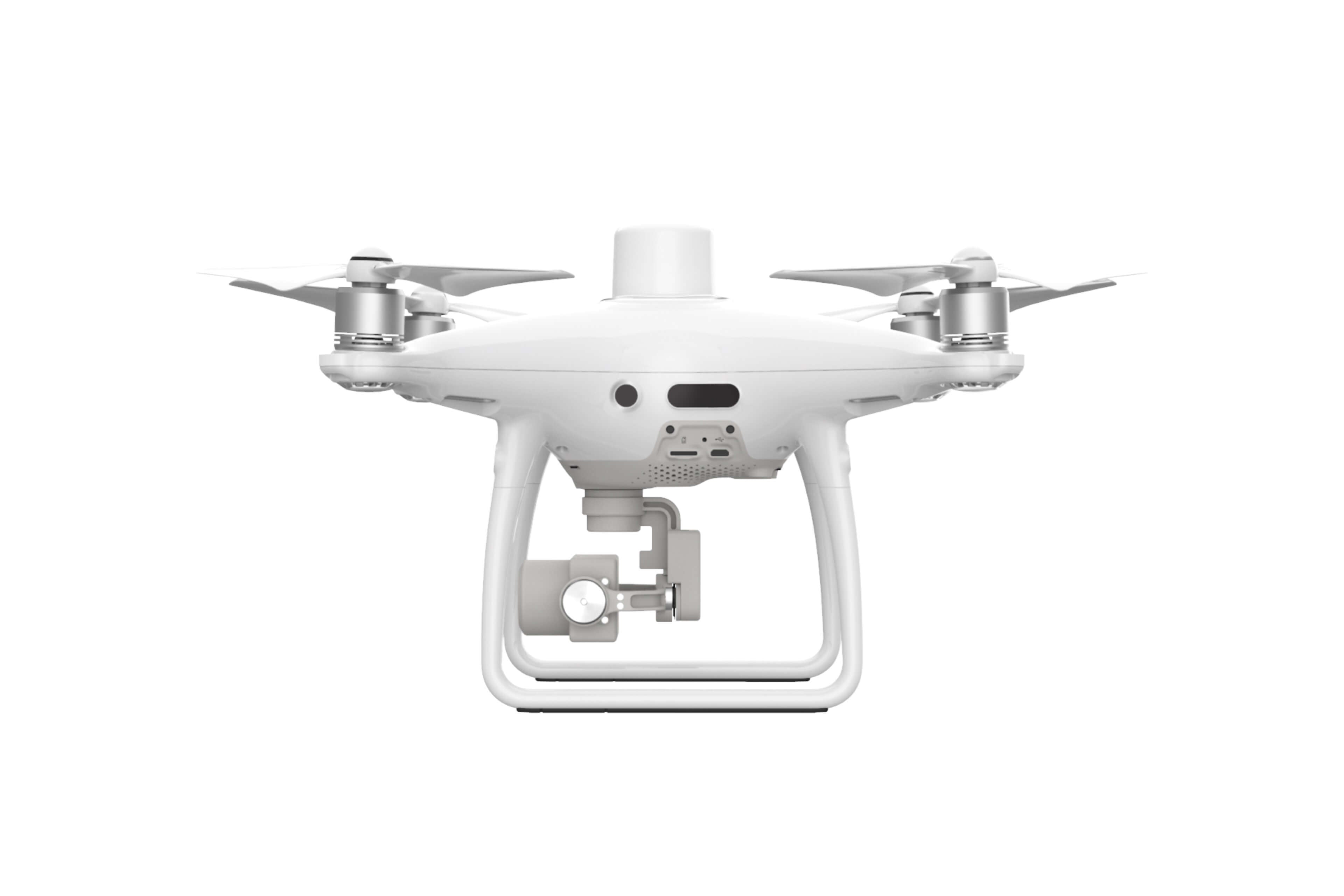

Introducing the Phantom 4 RTK. Now capable of mapping and surveying in one high-resolution camera. The Phantom 4 RTK camera allows it to capture centimeter-accurate RTK data.





Next Generation of Mapping

DJI has rethought its drone technology from the ground-up, revolutionizing it's systems to achieve a new standard of drone accuracy - offering Phantom Pro RTK centimeter - accurate date while requiring fewer grounf control points



A Centimeter Level Positioning System


Having the RTK module on the Phantom 4 RTL, the real-time centimeter-level position is vastly upgraded allowing for a more accurate image metadata. In areas that can cause interference such as dense cities and heavily forested areas, the Phantom 4 RTK can thrive as it can provide integrity to the most precise data capture for mapping, surveying and inspection work.

Fit the Phantom 4 RTK to any work flow through
  • D-RTK 2 Mobile Station
  • Network Transport of RTCM via Internet Protocol (NTRIP) using a 4G dongle or WiFi hotspot
  • Satellite observation data to be used for Post Processed Kinematics (PPK)







Gather Accurate Data with TimeSync



To take full advantage of the Phantom 4 RTK's positioning modules, the new TimeSync system was created to continually align the camera, flight controller, RTK module and camera. TimeSync also ensures that each photo uses the most accurate metadata and fixes the positioning data to the center of the CMOS, thus optimizes the results from the photogrammetric methods- ultimately allowing the image to achieve centimeter-level positioning data.



Ultra-Precise Imaging System



The Phantom 4 RTK can now capture the best image data possible due to the Phantom 4 Pro's camera featuring a 1-inch, 20 -megapixel sensor. With a built in mechanical shutter, mapping missions and regular data capture are seamless; the Phantom 4 RTK can move while taking pictures  without the risk of any rolling shutter blur- thus preserving the integrity of the photos.  The high resolution of its camera, the Phantom 4 RTK can achieve a Ground Sample Distance (GSD) of 2.74 cm at 100 meters flight altitude. Phantom 4 RTK accuracy is unparalleled through its intense process. The camera lens goes through a rigorous calibration process where tangential and radial lens distortion are measured carefully. Afterwards, the distortion parameters are gathered and saved into each image's metadata, the image then goes through a post-processing software to uniquely adjust for every user.

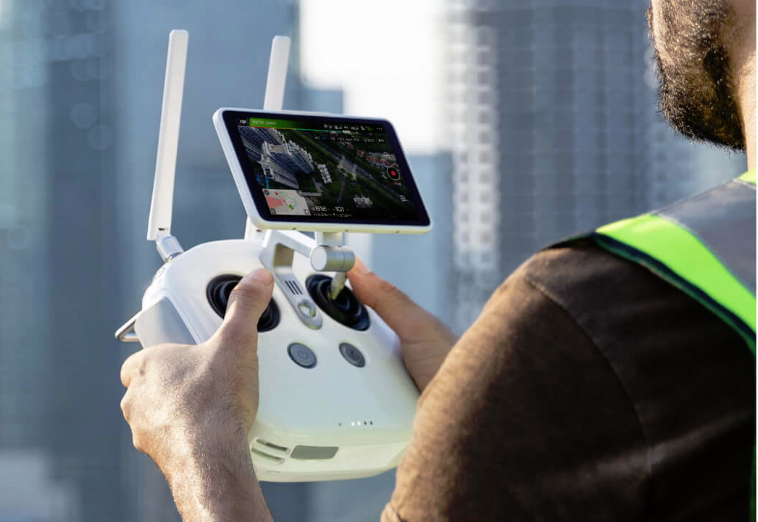

Purpose-Built Flight Planning Application



With the new GS TRK app, intelligent control gives the pilots two different planning modes when using the Phantom 4 RTK - Photogrammetry and Waypoint Flight, in addition to a more traditional flight mode. Pilots can now select the drone's flight path while adjusting overlap rate, altitude, camera parameters, speed, and more, offering an automated mapping and/or inspection workflow with their flight planning.

The GS RTK App was designed with its “users first” mentality  offers a full range of features made specifically to cater to mapping and inspection workflows. The app also has implemented direct loading of KML area files for in-office flight planning, a brand new shutter priority mode to keep exposure consistent across all photos, as well as a strong wind alarm to warn pilots of any adverse or extreme conditions.



Mobile SDK Supported



The Phantom 4 RTK is compatible with the DJI Mobile SDK, which opens up its functions to customization and automation through a mobile device. (Coming Soon)





OcuSync Transmission System



Users can enjoy extremely stable and reliable HD image and video transmission at distances of up to 7 kilometers, which is perfect for mapping larger sites.

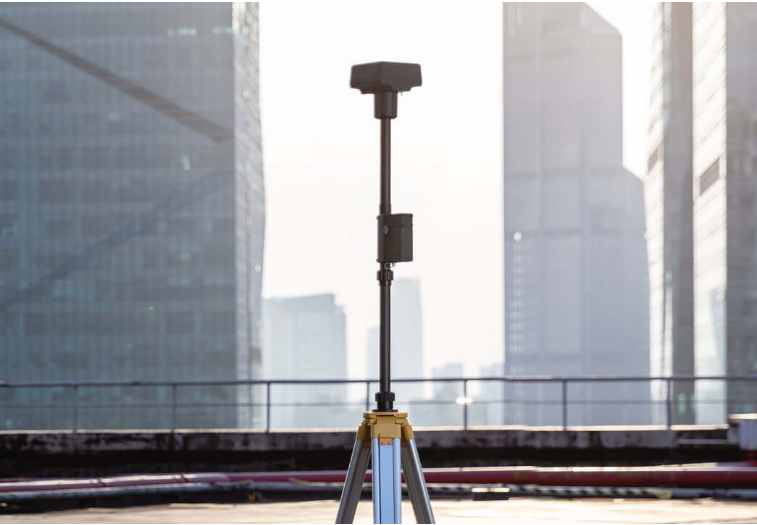

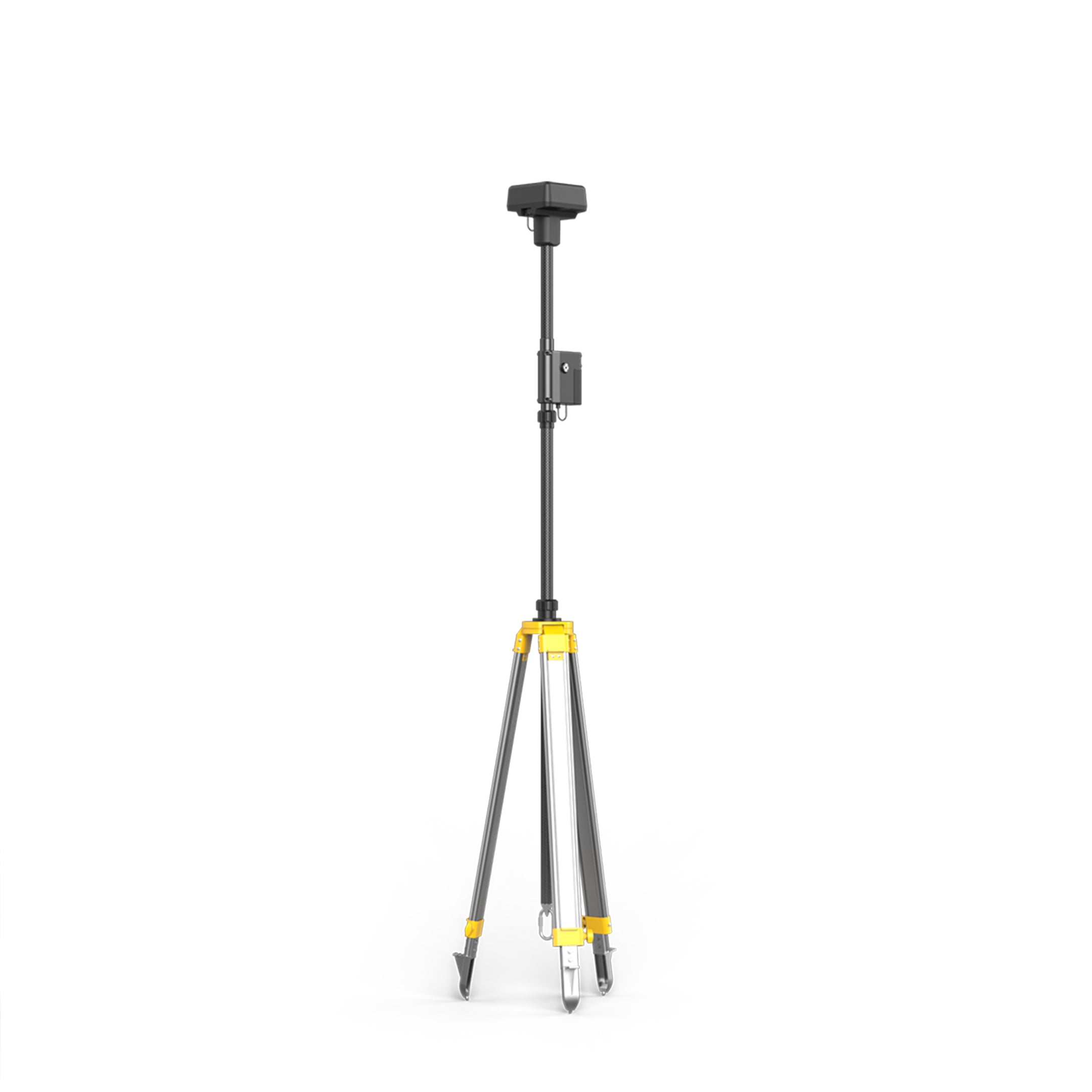

Seamless Compatibility with D-RTK 2 Mobile Station



Operators can support your Phantom 4 RTK missions with the D-RTK 2 Mobile Station - providing users with real-time differential data to the drone and forming an accurate surveying solution. The OcuSync 2 Transmission system and the Mobile Station's rugged design ensures that operators can gain centimeter-level accurate data with their Phantom 4 RTK in any condition.





Start Mapping Today



With an easy method to collect RTK Data (RTK Network or D-RTK 2 Mobile Station) and a built-in flight planning app (GS RTK), pilots have a full solution for any surveying, inspection, or mapping workflow right out of the box.









Tech Specs



Aircraft

Takeoff Weight 1391 g
Diagonal Distance 350 mm
Max Service Ceiling Above Sea Level 19685 ft (6000 m)
Max Ascent Speed 6 m/s (automatic flight); 5 m/s (manual control)
Max Descent Speed 3 m/s
Max Speed 31 mph (50 kph)(P-mode)
36 mph (58 kph)(A-mode)
Max Flight Time Approx. 30 minutes
Operating Temperature Range 32° to 104° F (0° to 40℃)
Operating Frequency 2.400 GHz to 2.483 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (United States, China)
Transmission Power (EIRP) 2.4 GHz
CE (Europe) / MIC (Japan) / KCC (Korea) :< 20 dBm

5.8 GHz
SRRC(China) / FCC(United States)/NCC(Taiwan,China):< 26 dBm
Hover Accuracy Range RTK enabled and functioning properly:
Vertical:±0.1 m;Horizontal:±0.1 m

RTK disabled
Vertical:±0.1 m(with vision positioning );
±0.5 m(with GNSS positioning)
Horizontal:±0.3 m(with vision positioning);
±1.5 m(with GNSS positioning)
Image Position Offset The position of the camera center is relative to the phase center of the onboard D-RTK antenna under the aircraft body's axis:(36, 0, and 192 mm) already applied to the image coordinates in Exif data. The positive x, y, and z axes of the aircraft body point to the forward, rightward, and downward of the aircraft, respectively.

Mapping Functions

Mapping Accuracy ** Mapping accuracy meets the requirements of the ASPRS Accuracy Standards for Digital Orthophotos Class Ⅲ
** The actual accuracy depends on surrounding lighting and patterns, aircraft altitude, mapping software used, and other factors when shooting.
Ground Sample Distance(GSD) (H/36.5) cm/pixel,
H means the aircraft altitude relative to shooting scene (unit: m)
Data Acquisition Efficiency Max operating area of approx. 1 km² for a single flight(at an altitude of 182 m, i.e., GSD is approx. 5 cm/pixel, meeting the requirements of the ASPRS Accuracy Standards for Digital Orthophotos Class Ⅲ

Vision System

Velocity Range ≤31 mph(50 kph) at 6.6 ft(2 m) above ground with adequate lighting
Altitude Range 0-33 ft(0 - 10 m)
Operating Range 0-33 ft(0 - 10 m)
Obstacle Sensing Range 2-98 ft(0.7-30 m)
FOV Forward/Rear: 60° (horizontal), ±27° (vertical)
Downward: 70° (front and rear), 50° (left and right)
Measuring Frequency Forward/Rear:10 Hz;
Downward: 20 Hz
Operating Environment Surfaces with clear patterns and adequate lighting(> 15 lux)

Camera

Sensor 1" CMOS; Effective pixels: 20 M
Lens FOV 84°;8.8 mm / 24 mm(35 mm format equivalent:24 mm);
f/2.8 - f/11, auto focus at 1 m - ∞
ISO Range Video:100-3200(Auto)
100-6400(Manual);

Photo:100-3200(Auto)
100-12800(Manual)
Mechanical Shutter Speed 8 - 1/2000 s
Electronic Shutter Speed 8 - 1/8000 s
Max Image Size 4864×3648(4:3);
5472×3648(3:2)
Video Recording Modes H.264,4K:3840×2160 30p
Photo Format JPEG
Video Format MOV
Supported File Systems FAT32(≤ 32 GB);
exFAT(> 32 GB)
Supported SD Cards MicroSD, Max Capacity: 128 GB. Class 10 or UHS-1 rating required Write speed≥15 MB/s
Operating Temperature Range 32° to 104° F (0° to 40℃)

Intelligent Flight Battery(PH4-5870mAh-15.2V)

Capacity 5870 mAh
Voltage 15.2 V
Battery Type LiPo 4S
Energy 89.2 Wh
Net Weight 468 g
Charging Temperature Range 14° to 104℉(-10° to 40℃)
Max charging Power 160 W

Intelligent Battery Charing Hub(WCH2)

Input Voltage 17.3 - 26.2 V
Output Voltage and Current 8.7 V,6 A;5 V,2 A
Operating Temperature 41° to 104℉(5° to 40℃)

SDK Remote Controller

Operating Frequency 2.400 GHz to 2.483 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (Other countries/regions)
EIRP 2.4 GHz
CE / MIC / KCC: < 20 dBm

5.8 GHz
FCC / SRRC / NCC: < 26 dBm
Max Transmission Distance FCC / NCC: 4.3 mi (7 km);
CE / MIC / KCC / SRRC: 3.1 mi (5 km)
  (Unobstructed, free of interference)
Built-in Battery 6000 mAh LiPo 2S
Operating Current / Voltage 1.2 A @ 7.4 V
Mobile Device Holder Tablets and smartphones
Operating Temperature 32° to 104° F (0° to 40° C)

GNSS

Single-Frequency, High-Sensitivity GNSS Module GPS+BeiDou+Galileo(Asia);
GPS+GLONASS+Galileo(other regions)
Multi-Frequency Multi-System High-Precision RTK GNSS Frequency Used:
GPS:L1/L2;
GLONASS:L1/L2;
BeiDou:B1/B2;
Galileo:E1/E5a

First-Fixed Time:< 50 s

Positioning Accuracy: Vertical 1.5 cm + 1 ppm(RMS);
Horizontal 1 cm + 1 ppm(RMS)
1 ppm means the error has a 1mm increase for every 1 km of movement from the aircraft.

Gimbal

Stabilization 3-axis (tilt, roll, yaw)
Pitch -90° to +30°
Max Controllable Angular Speed 90°/s
Angular Vibration Range ±0.02°

Infrared

Obstacle Sensing Range 0.6-23 ft(0.2 - 7 m)
FOV 70°(Horizontal)
±10°(Vertical)
Measuring Frequency 10 Hz
Operating Environment Surface with diffuse reflection material, and reflectivity> 8%(such as wall,trees, humans, etc.)

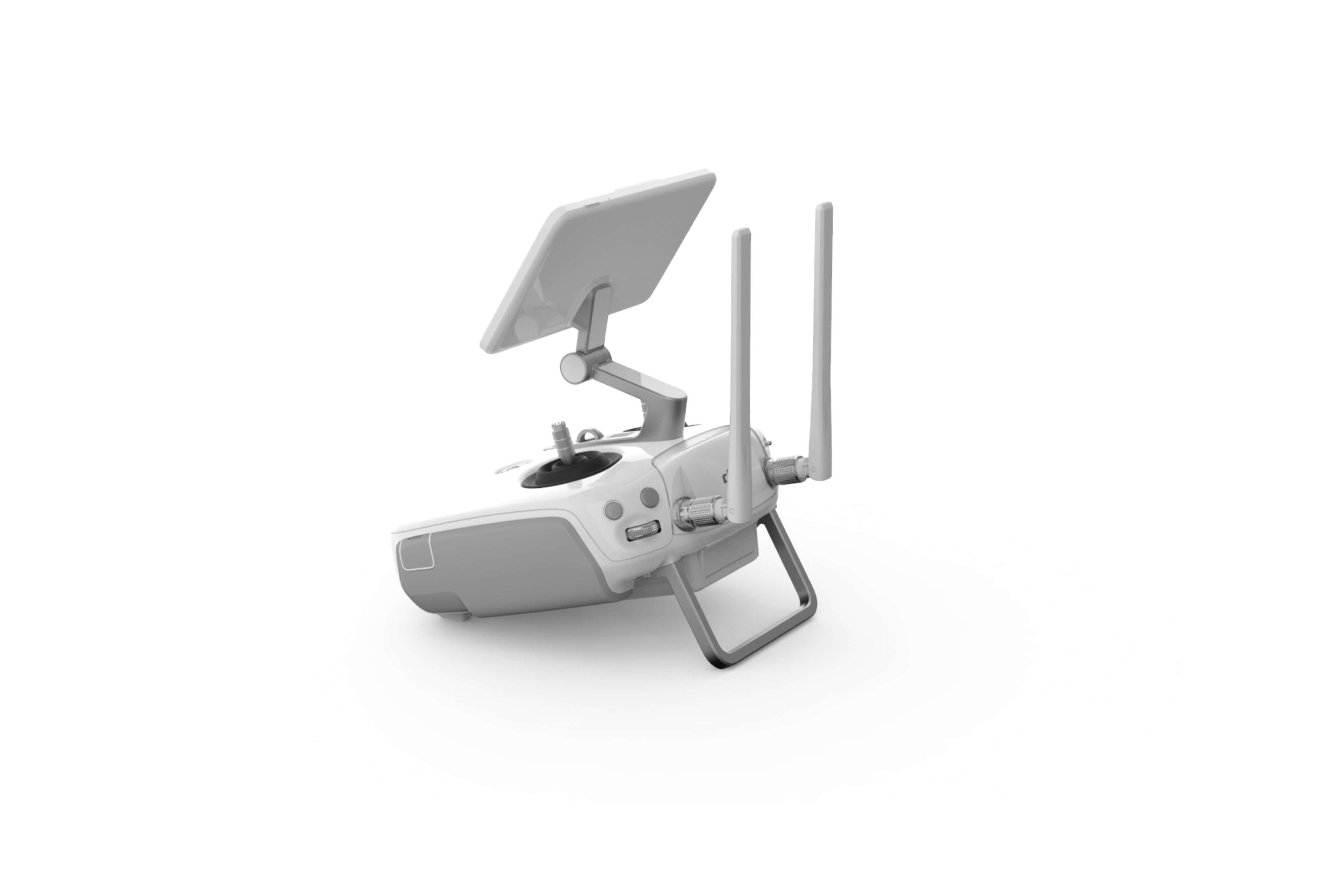

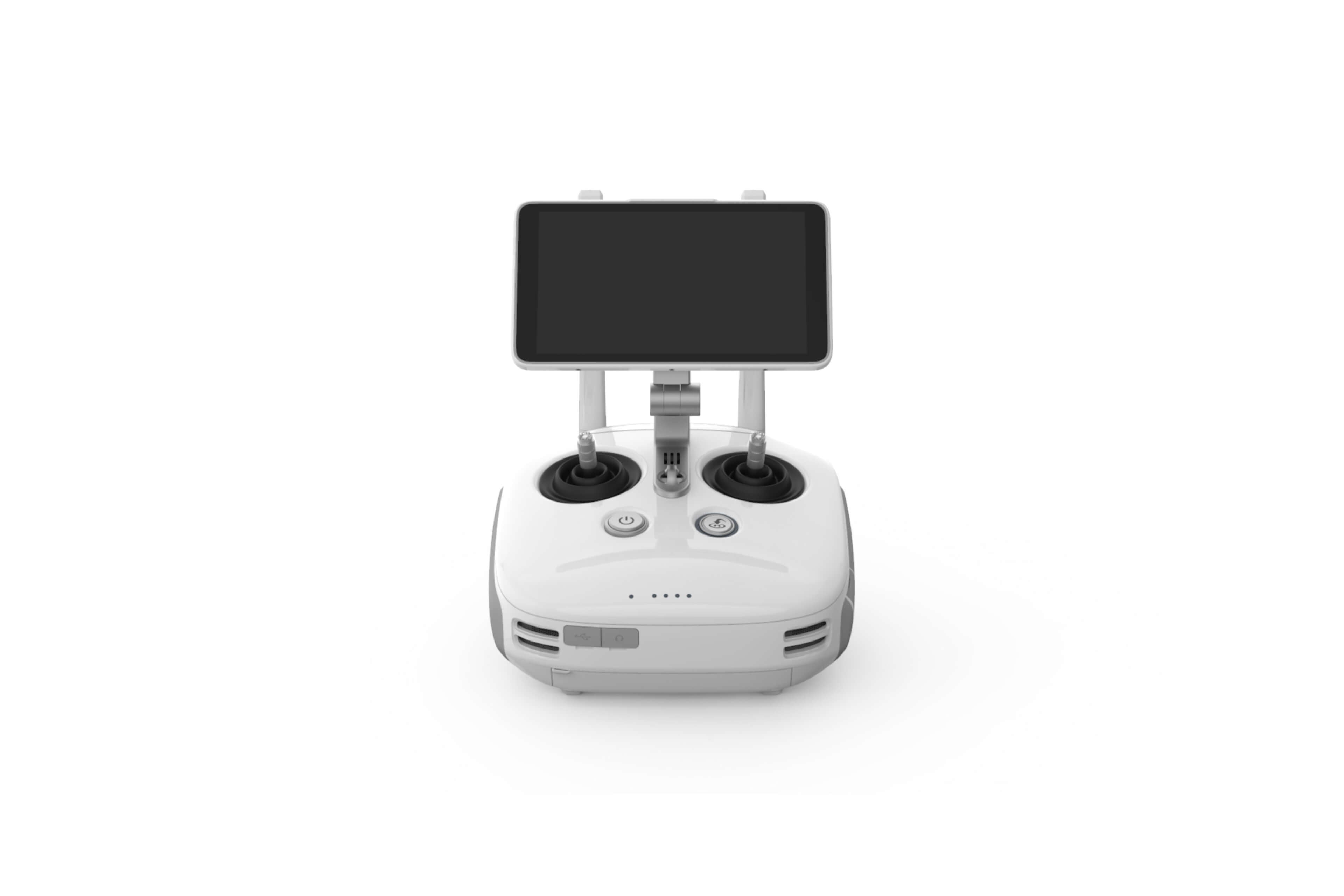

Remote Controller

Operating Frequency 2.400 GHz-2.483 GHz(Europe,Japan,Korea)
5.725 GHz-5.850 GHz(United States, China)
Transmission Power (EIRP) 2.4 GHz
CE / MIC / KCC:< 20 dBm

5.8 GHz
SRRC / FCC:< 26 dBm
Max Transmission Distance FCC:4.3 mi(7 km);
SRRC / CE / MIC / KCC:3.1 mi(5 km) (Unobstrcted, free of interference)
Power Consumption 16 W(typical value)
Display 5.5 inch screen, 1920×1080, 1000 cd/m², Android System
Memory 4G RAM+16G ROM
Operating Temperature Range 32° to 104° F (0° to 40℃)

Intelligent Flight Battery Charging Hub(PHANTOM 4 CHARING HUB)

Voltage 17.5 V
Operating Temperature Range 41° to 104℉(5° to 40℃)
Capacity 4920 mAh
Voltage 7.6 V
Battery Type LiPo 2S
Energy 37.39 Wh
Operating Temperature -4° to 104℉(-20° to 40℃)

AC Power Adapter(PH4C160)

Voltage 17.4 V
Rated Power 160 W


In The Box



(In The Box)

  • Phantom 4 RTK Body
  • D-RTK 2 Mobile Station
  • Remote Controller
  • Propeller Pair x4
  • Intelligent Flight Battery x2
  • AC Power Cable
  • Remote Controller Intelligent Battery
  • AC Power Adapter
  • Intelligent Battery Charging Hub
  • Intelligent Flight Battery Charging Hub
  • Gimbal Clamp
  • MicroSD Card (16GB)
  • Carrying Case
  • Micro USB Cable
  • USB-C Cable
  • USB-C OTG Cable
  • Phillips Screw x2
  • Enterprise Shield
  • D-RTK 2 High Precision GNSS Mobile Station
  • D-RTK 2 Base Station Tripod
