CHASING M2 Pro Max – Shore-Based Power Supply System (C-SPSS)
Now Available for Pre-Order

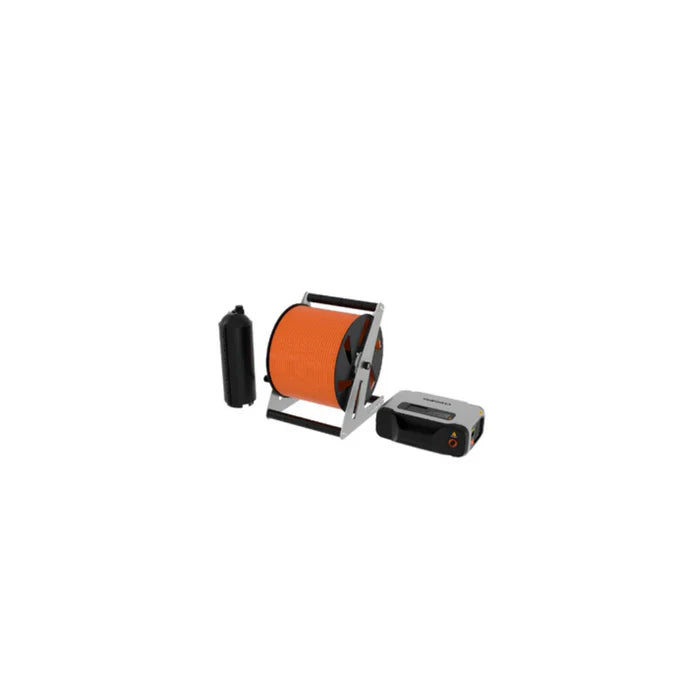

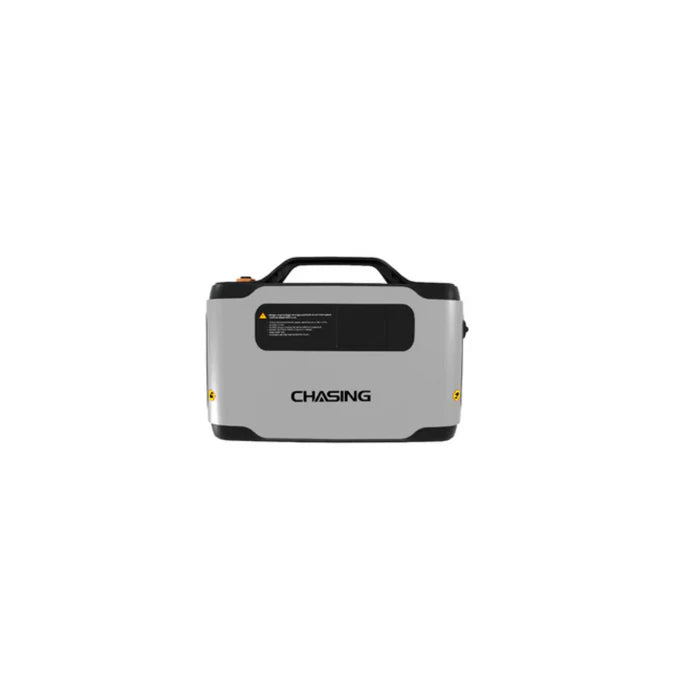

The CHASING Shore-Based Power Supply System (C-SPSS) is made for long-duration underwater operations. With a smart battery compartment design, it’s easy to install and provides a powerful 1,500W output, keeping your ROV and accessories running at full power without worrying about battery life.
Why It Stands Out
24/7 Power, No Downtime
With up to 1,500W of continuous output, the C-SPSS gives your ROV the energy it needs to operate non-stop—even when using up to five accessories at once. It’s built for serious, extended missions.
Go Farther with Long Cable Options

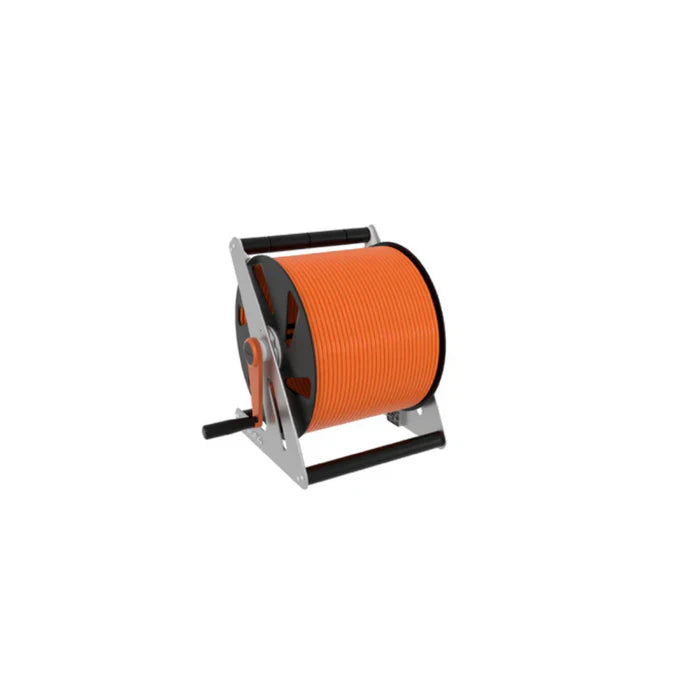

Available in 100m and 200m lengths, the high-strength power cable can handle up to 250kgf of tension, giving you the flexibility to explore deeper or farther while staying reliably connected—even in tough underwater environments.
Quick Setup, Easy to Use
The system uses a battery-style compartment design that makes it simple to install. Just plug it in and get started—no complicated setup or tech skills required.
Smart Safety Features
To protect both the system and the user, the C-SPSS includes built-in safeguards like:
-
Overcurrent, overvoltage, and undervoltage protection
-
Short circuit and high temperature protection
-
Leak protection
Built for the Field
It comes with a durable, military-grade trolley case that’s both rugged and portable—perfect for transport, storage, and tough working conditions.
Compatible With:
-
CHASING M2 Pro
-
CHASING M2 Pro Max
Tech Specs:
-
Size: 230 × 315 × 118 mm
-
Weight: 3.9 kg
-
Water Resistance: IP21
-
Operating Temp: -10°C to +50°C
-
Humidity: 5–95% (non-condensing)
-
Screen: 2.8” resistive touchscreen (320 × 240 resolution)
-
Network Port: 10/100 Mbps
-
Input Power:
-
100–125V AC, 50/60Hz, 15A max
-
200–240V AC, 50/60Hz, 10A max
-
-
High Voltage Output:
-
490V DC, 2000W max @ 220V
-
490V DC, 1500W max @ 110V
-
-
RC Port Output: 24V DC, 50W max
-
Efficiency: 92% or higher
