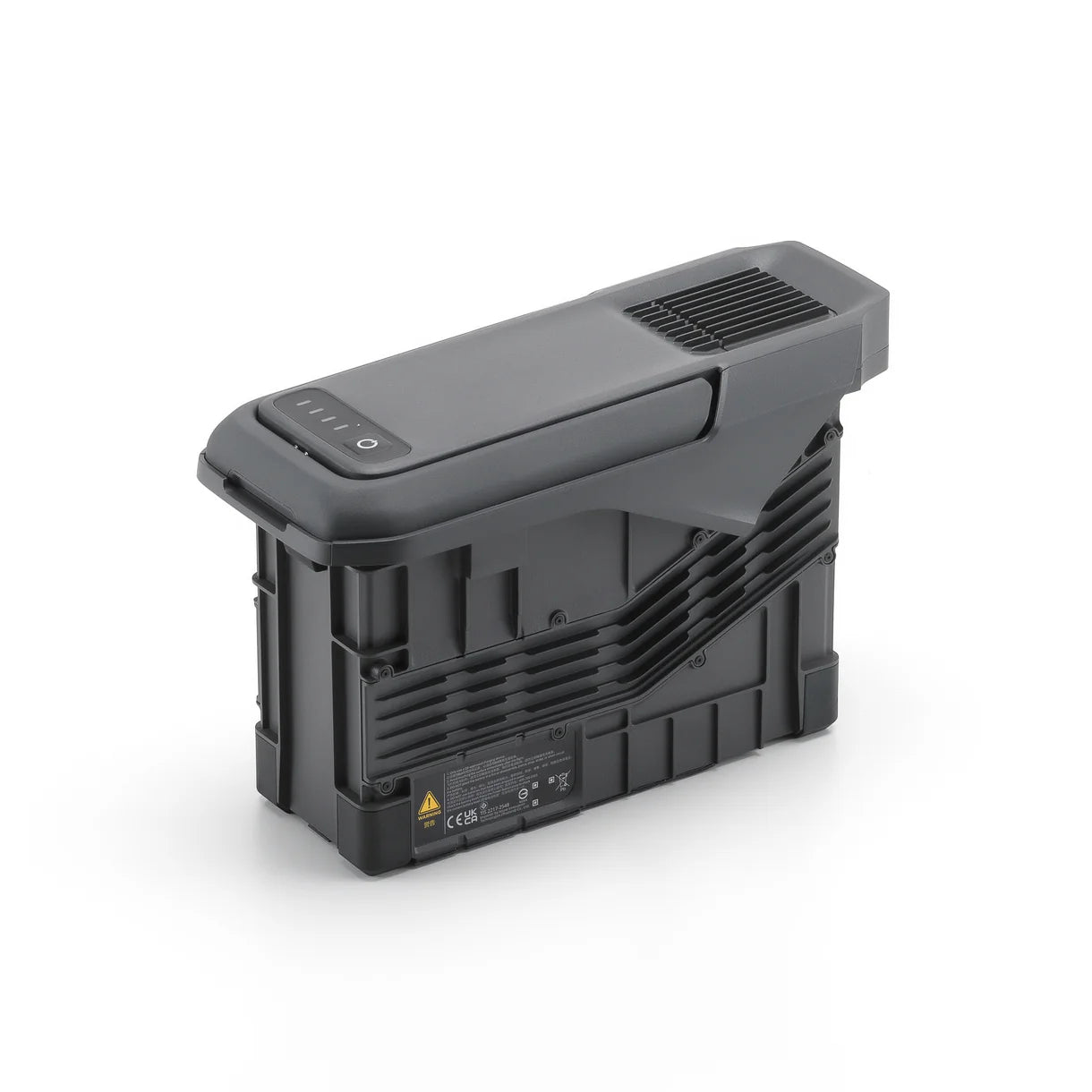

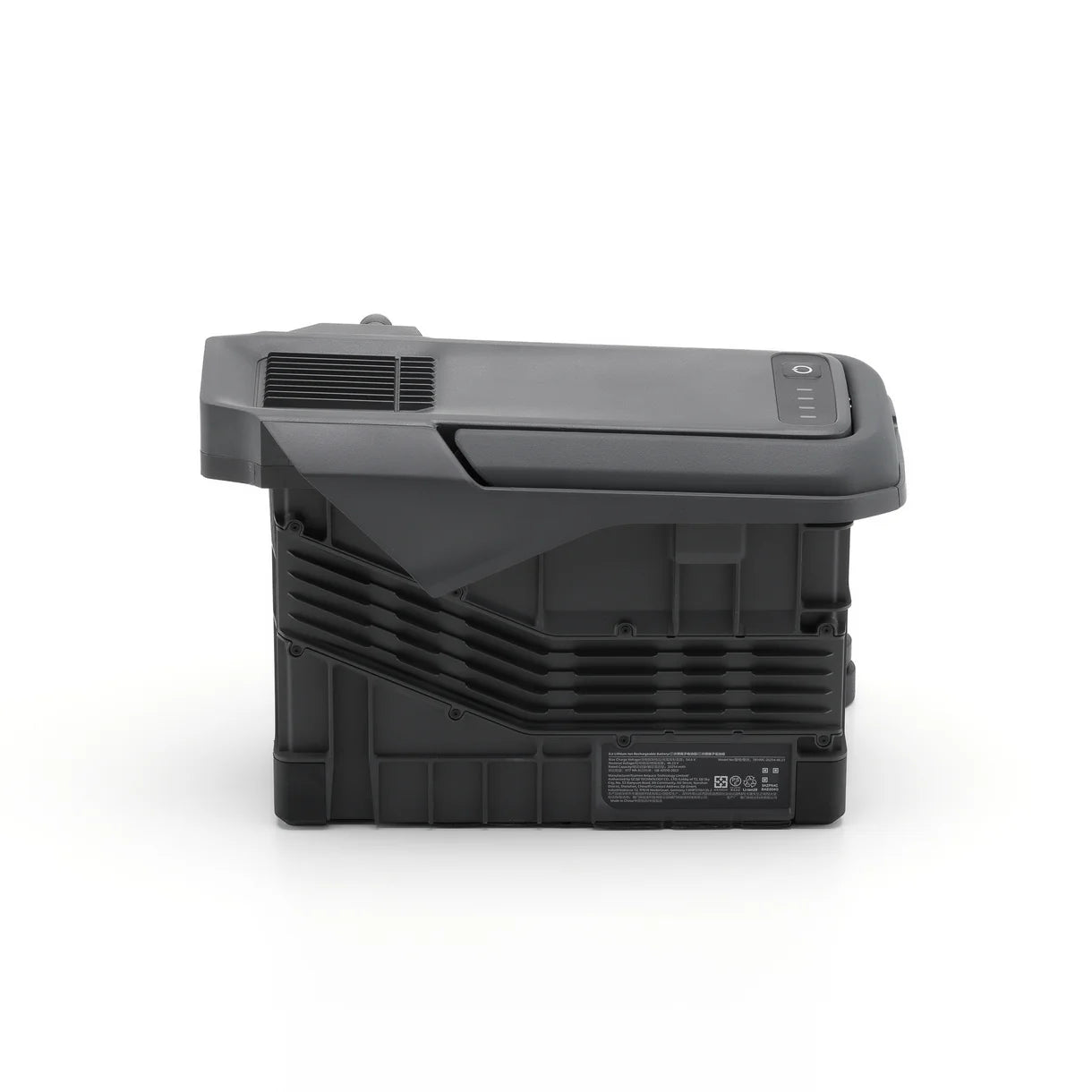

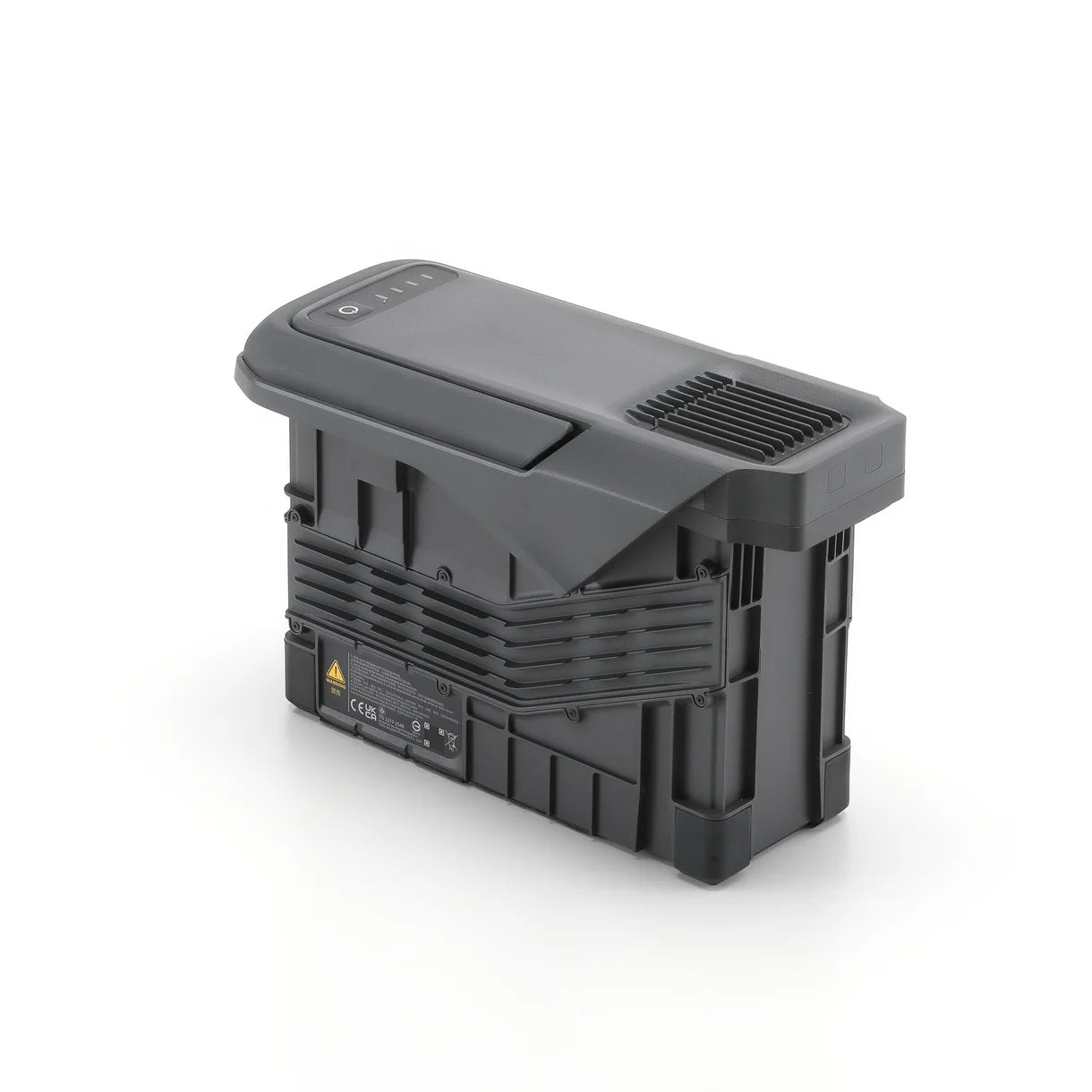

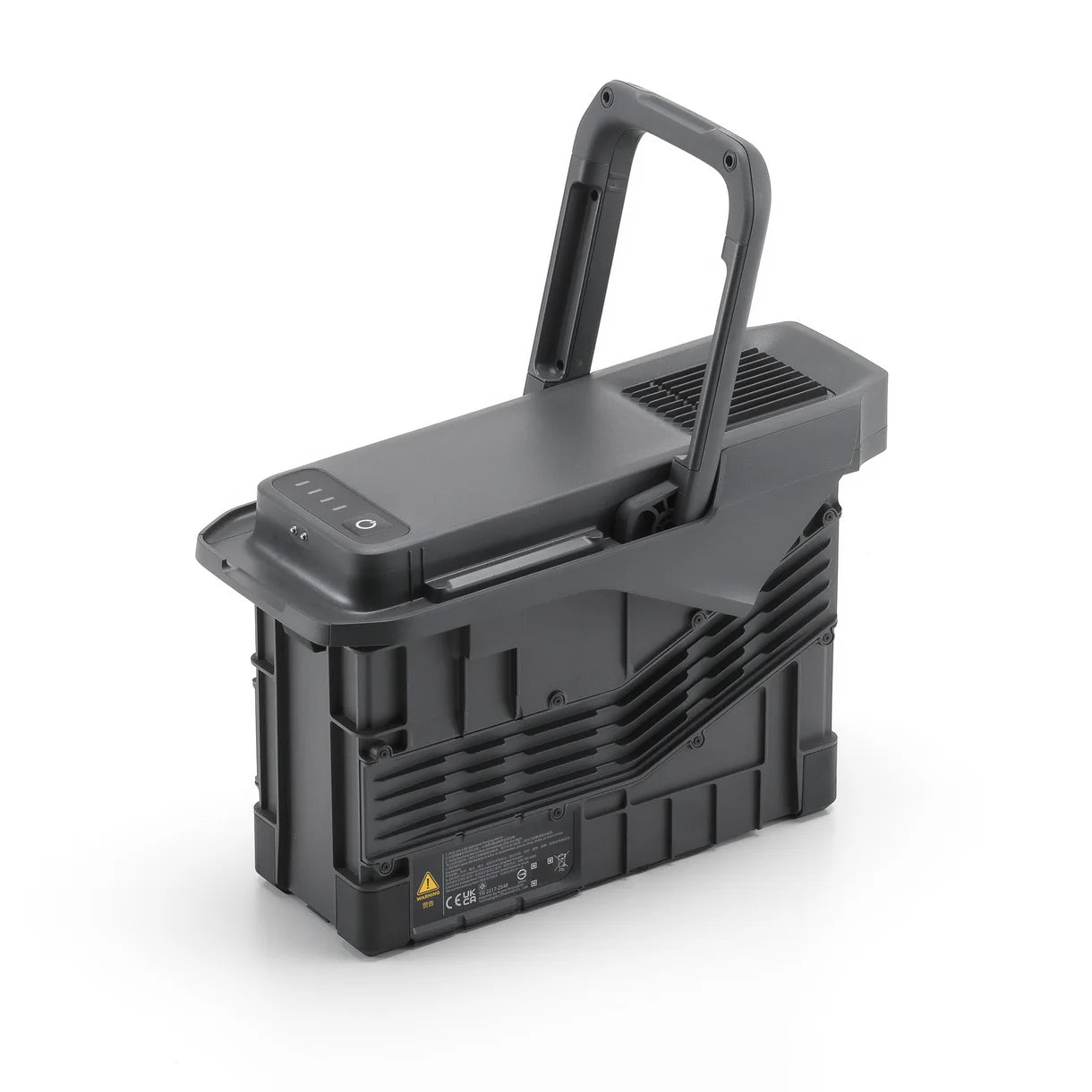

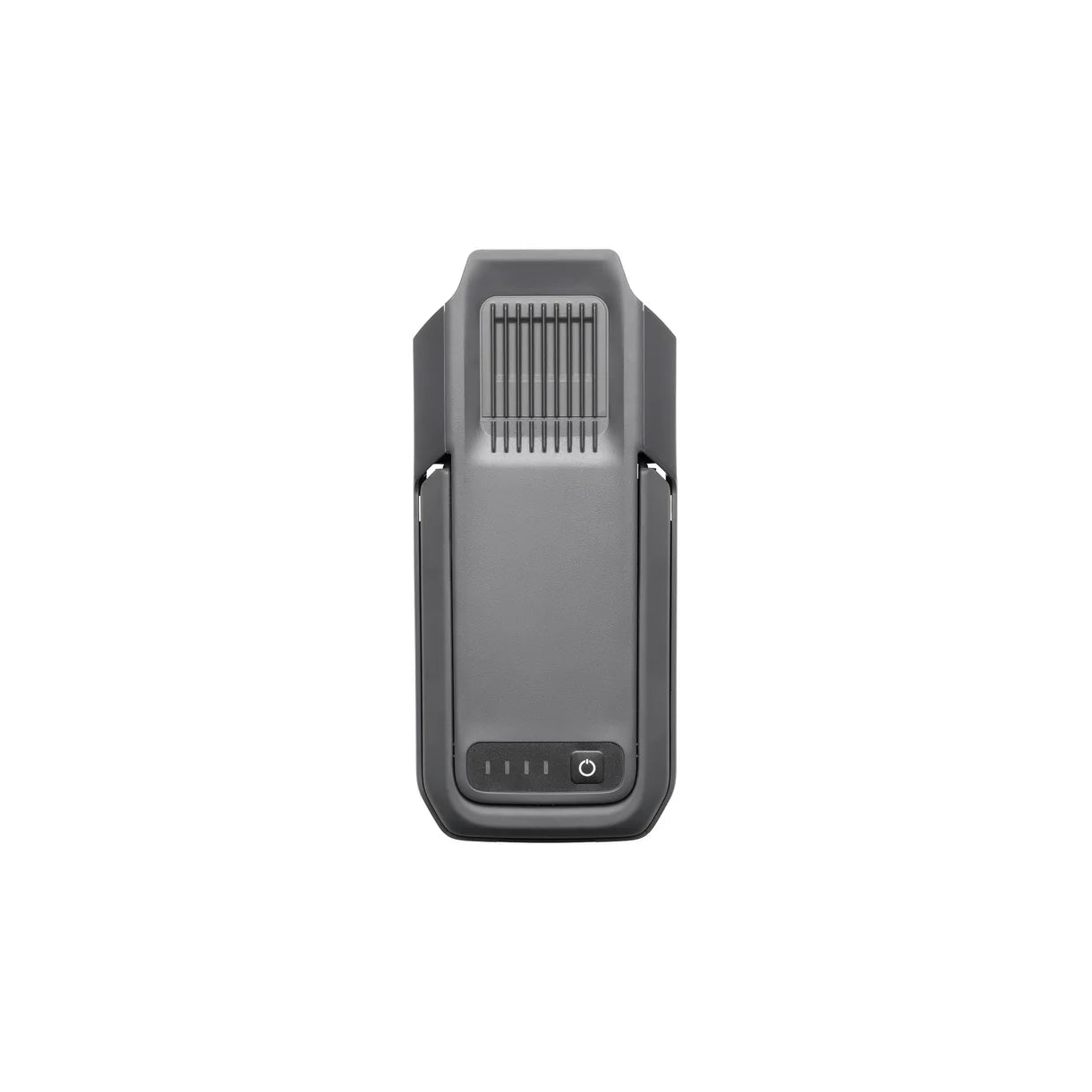

DJI TB100 Intelligent Flight Battery — For Matrice 400 Series

Long-endurance, enterprise-grade power for DJI Matrice 400 missions.
The DJI TB100 Intelligent Flight Battery delivers dependable, high-capacity power in harsh conditions. With 20,254 mAh (977 Wh) of energy, smart thermal management, and seamless compatibility with the DJI Matrice 400 Series and BS100 Battery Station, the TB100 keeps inspection, mapping, public safety, and surveying operations airborne longer—with safer, more efficient turnarounds.

Why choose the TB100

• Maximize uptime: 977 Wh capacity and 48.23 V standard voltage support extended flights for data-dense missions.

• Cold-weather ready: Built-in self-heating ensures reliable starts in sub-zero environments and rapid readiness on site.

• Faster, smarter charging: Works with the DJI BS100 Battery Station for intelligent workflows and reduced turnaround time.

• Enterprise reliability: Up to 400 charge cycles to help lower long-term operating costs and minimize downtime.

• Rugged performance: Operates across demanding temperatures: charge 5–45°C, discharge −20–75°C.

Key specs

• Capacity / Energy: 20,254 mAh / 977 Wh

• Voltage: 48.23 V (max charge 54.6 V)

• Cell configuration: Li-ion 13S

• Discharge rate: Up to 4C

• Max charging power: 2C

• Operating temps: Charge 5–45°C; Discharge −20–75°C

• Cycle life: Up to 400 cycles

• Compatibility: DJI Matrice 400 Series, DJI BS100 Battery Station

Ideal use cases

• Infrastructure & utility inspection

• Photogrammetry & LiDAR mapping

• Public safety & search-and-rescue

• Construction progress & volumetrics

• Environmental monitoring & surveying

What’s in the box

• 1× DJI TB100 Intelligent Flight Battery

Pair it with (recommended)

• DJI BS100 Battery Station – Precision charging and rapid turnarounds

• DJI Matrice 400 Series – Next-gen enterprise platform

FAQs

How much flight time will I get with the TB100?
Flight time varies by payload, weather, and flight profile. Heavier sensors and windy conditions reduce endurance. For planning, estimate using your typical payload and add margin for RTH and reserves.

Can the TB100 pre-heat itself in the field?
Yes. The battery’s self-heating function supports cold-weather starts when used individually, installed on the aircraft, or connected via the BS100 Battery Station.

Is the TB100 compatible with legacy Matrice systems?
The TB100 is designed for the Matrice 400 Series. Check your aircraft’s documentation for supported battery models before purchase.

What’s the recommended charging method?
Use the DJI BS100 Battery Station for intelligent charging, health management, and faster multi-battery turnarounds.

What is the expected lifespan?
Up to 400 cycles under normal use. Actual lifespan depends on depth of discharge, storage conditions, and operating temperatures.
