Overview

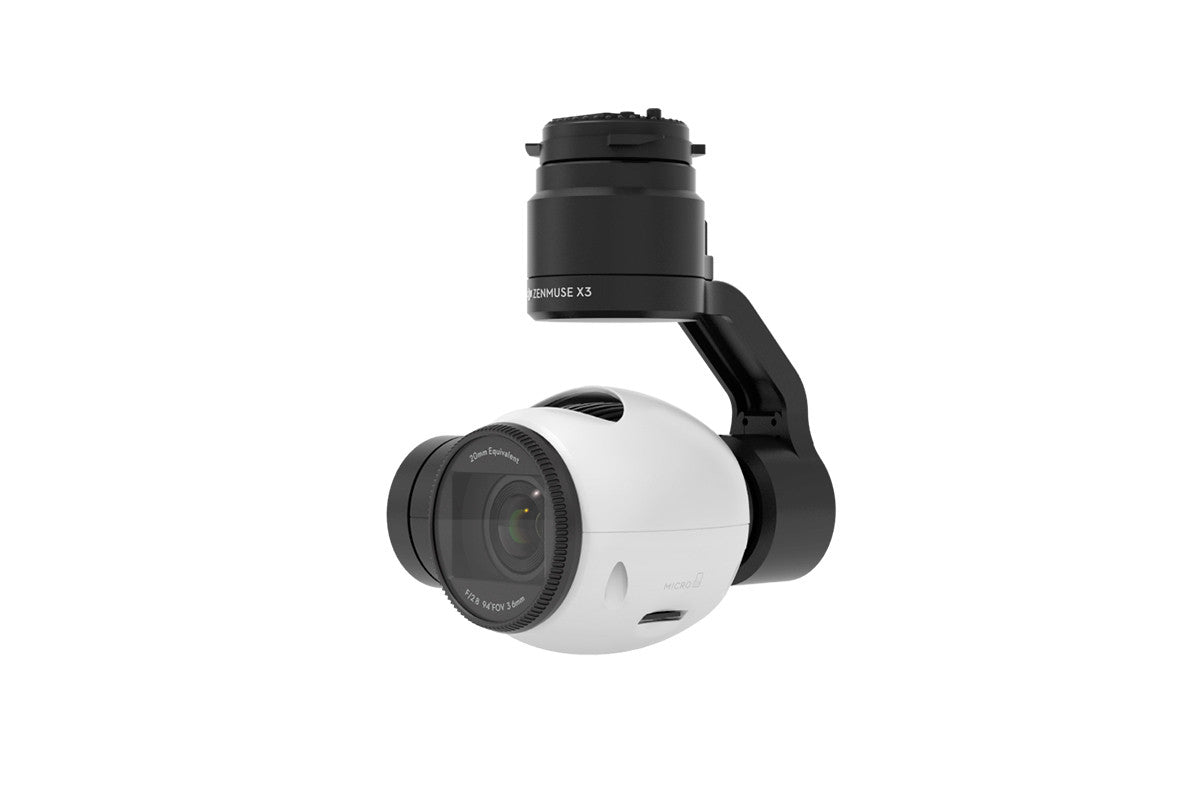

DJI ZENMUSE X3 NDVI CAMERA
The NDVI X3 Camera/Gimbal unit is factory converted by DJI. that comes with DJI Smart Farming Package.
CAM SPECS
This is a high quality dual-band NDVI lens with superior contrast between the bands and no spectral cross-talk. This filter easily lets you see where vegetation is thriving and is not.
CAM SPECS
This is a high quality dual-band NDVI lens with superior contrast between the bands and no spectral cross-talk. This filter easily lets you see where vegetation is thriving and is not.
Plants absorb visible light and reflect infrared light. By dividing the red channel (Near Infrared Light) by the blue channel (Visible Light) of images captured using this filter the resulting gray-scale image can have a false-color "heat-map" gradient applied to it.
FILTER SPECIFICATIONS:
Weight: 0.27g
Diameter: 12.53mm
Thickness: 1.0mm
Optics Material: Glass
Scratch-Dig (MIL-PRF-13830B): <40-20
Peak Transmissions: 90.41% (446nm) + 93.28% (800nm)
Bandwidth: 420-476nm + 764-840nm (>1% Transmission)
